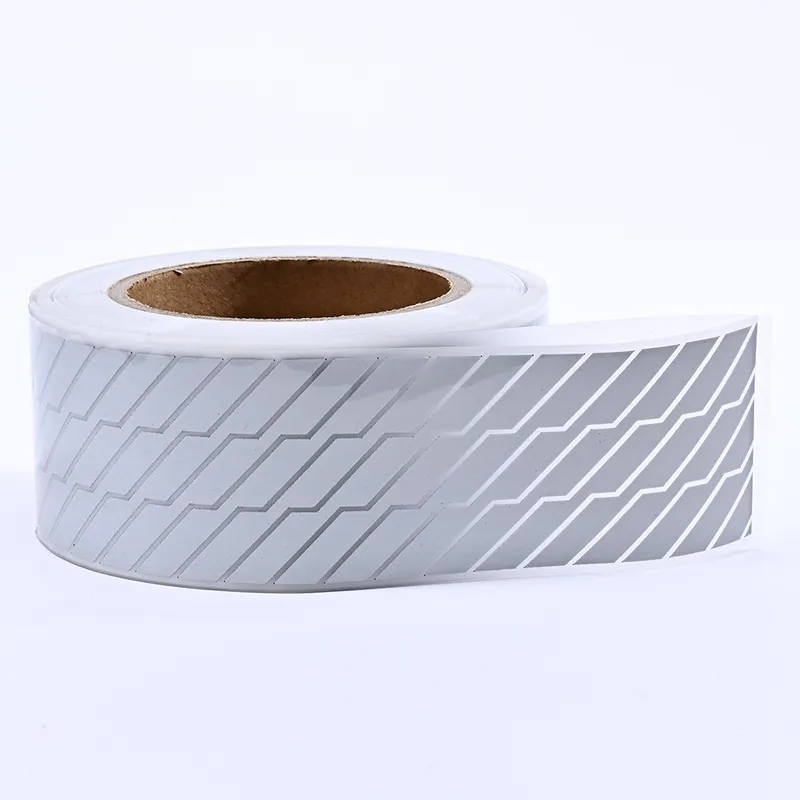

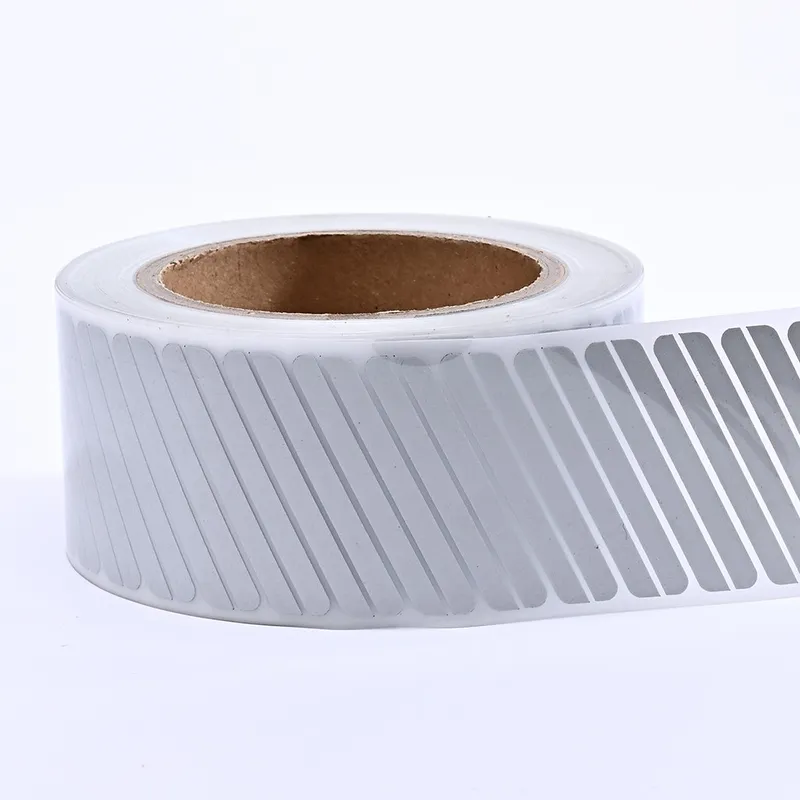

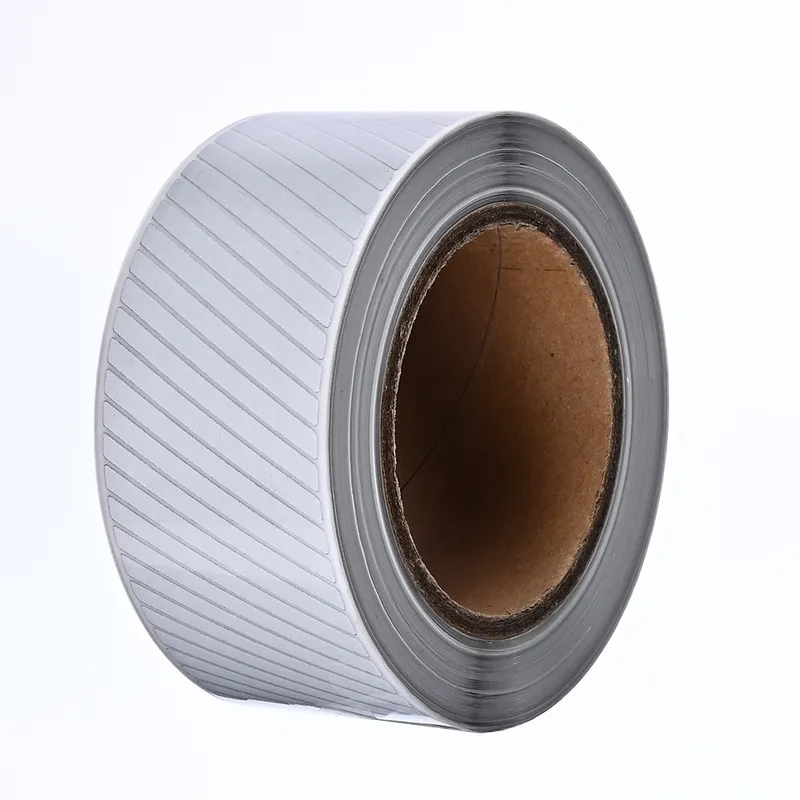

50mm Heat Transfer Reflective Film
5cm Heat Transfer Reflective Film
Model: 6804-2032
Material: | PET Film |
Width: | 5cm |
Type: | Heat Transfer Reflective Film |
Color: | Bright Silver |
Packaging: | 50-200m/roll |
MOQ: |
|
MH Reflective Tape Factory
50,000m²
Plant Area
$10 million
Annual Sales Amount
500,000m²
Month Production
About Ningbo MH
MH specializes in garment accessories and fabrics, offering high-quality solutions for the textile and home décor industries. With advanced automated warehousing, MH ensures efficient supply chain management and provides comprehensive after-sales support, exclusively serving businesses, not individuals.
1999
Since
$871Million
Annual Sales
40+
Branch Offices
600+
Staffs
Product Details
Material: PET Film with Reflective Coating
Width: 5cm
Color: Bright Silver

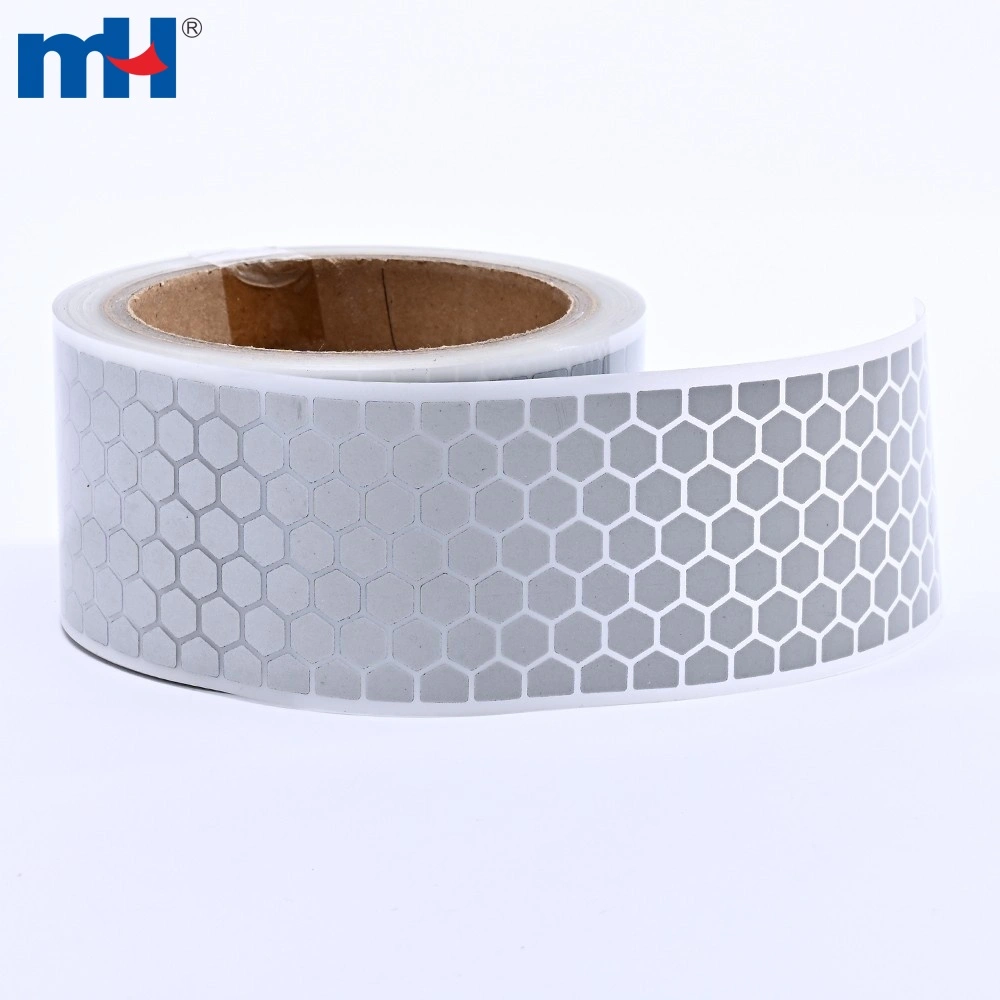

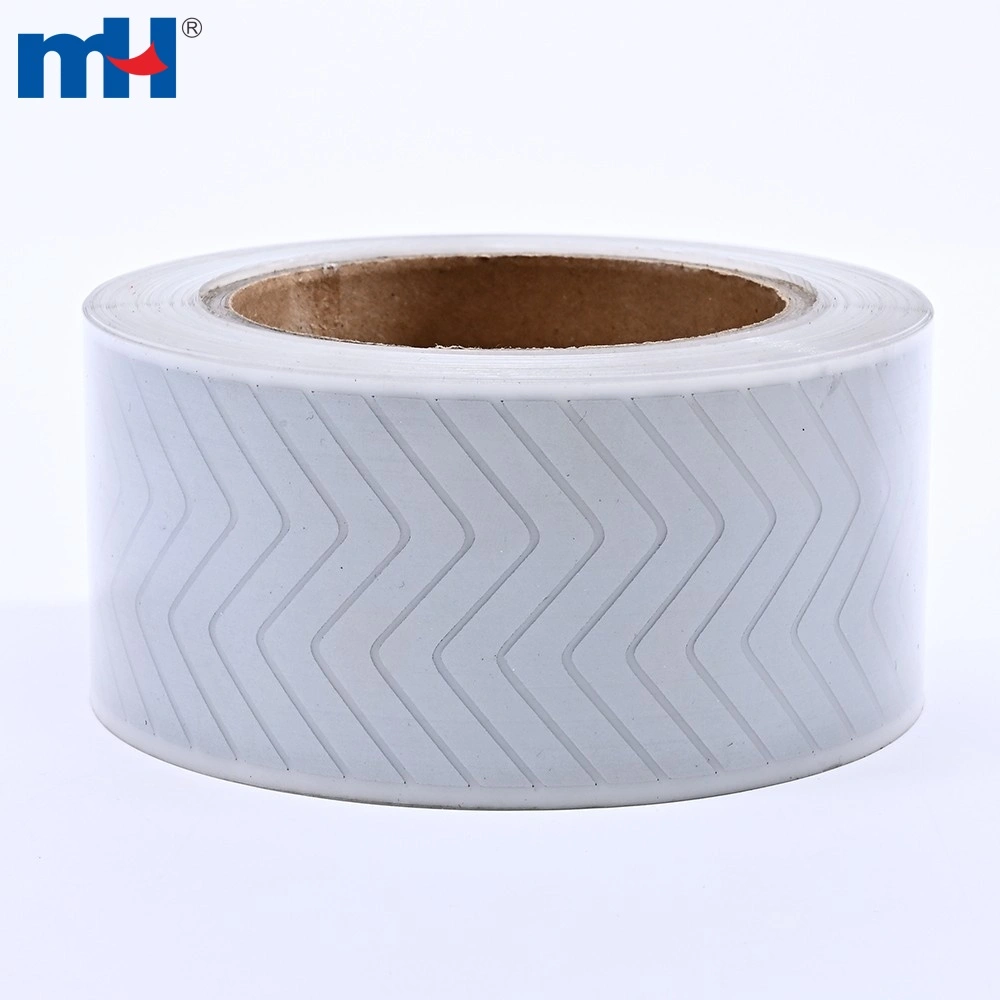

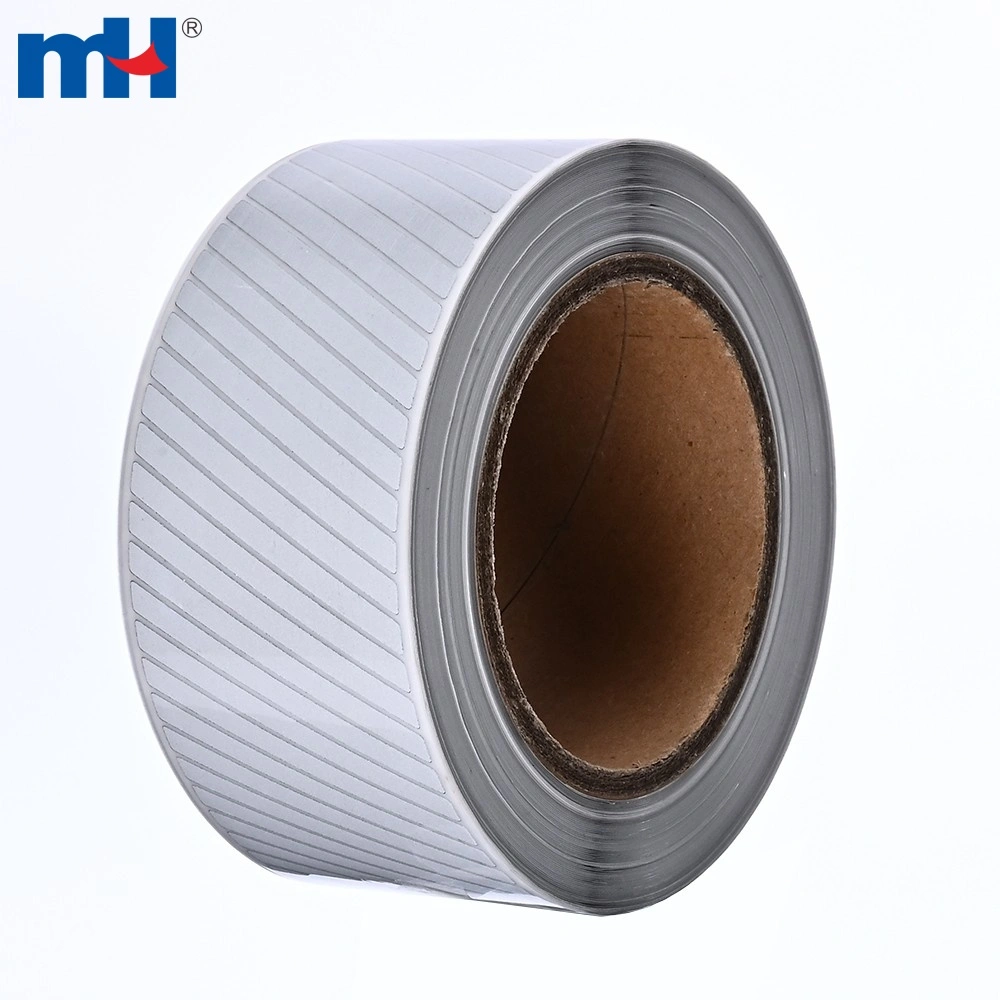

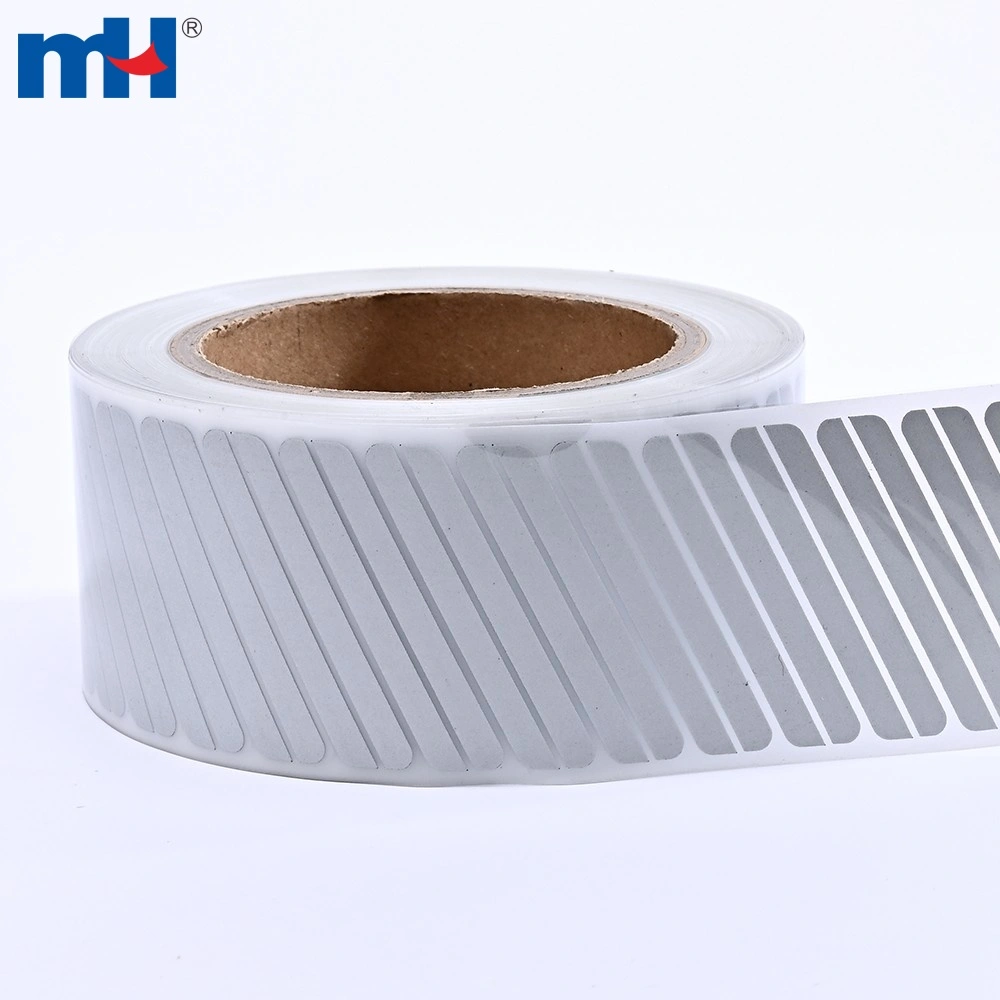

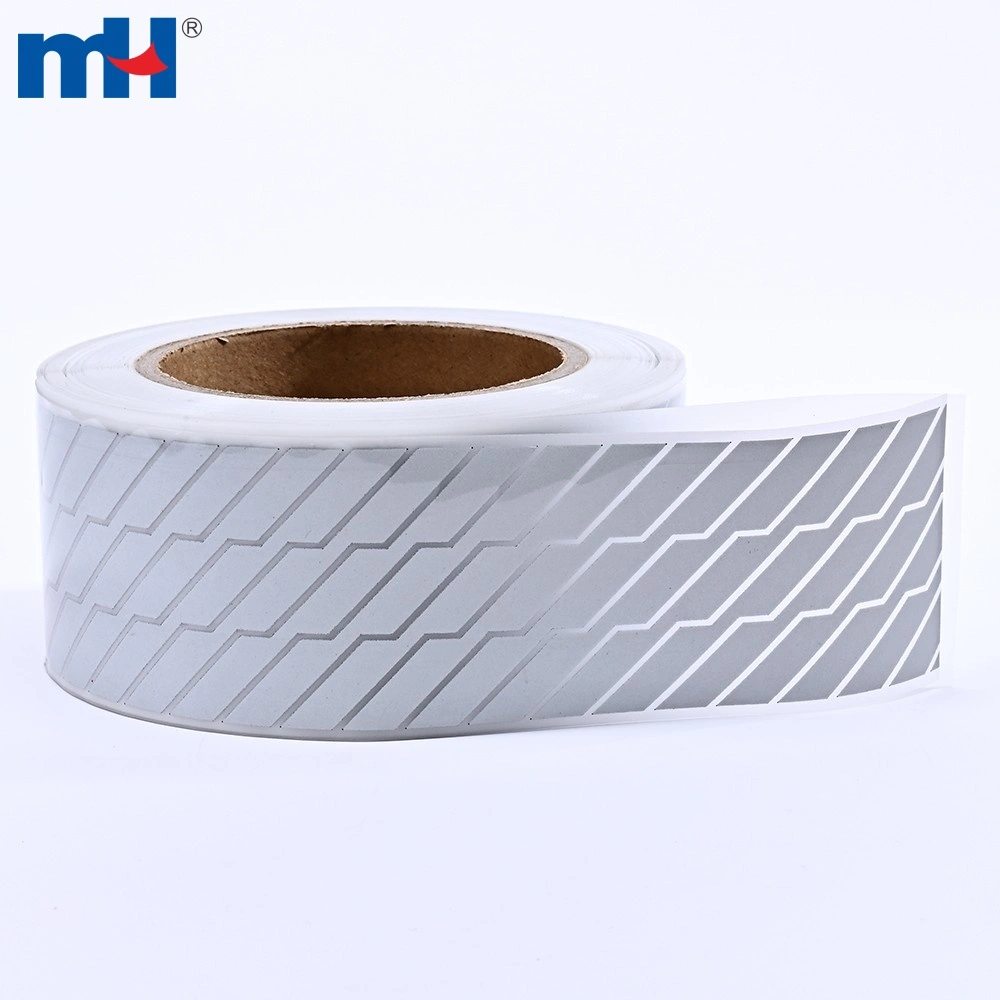

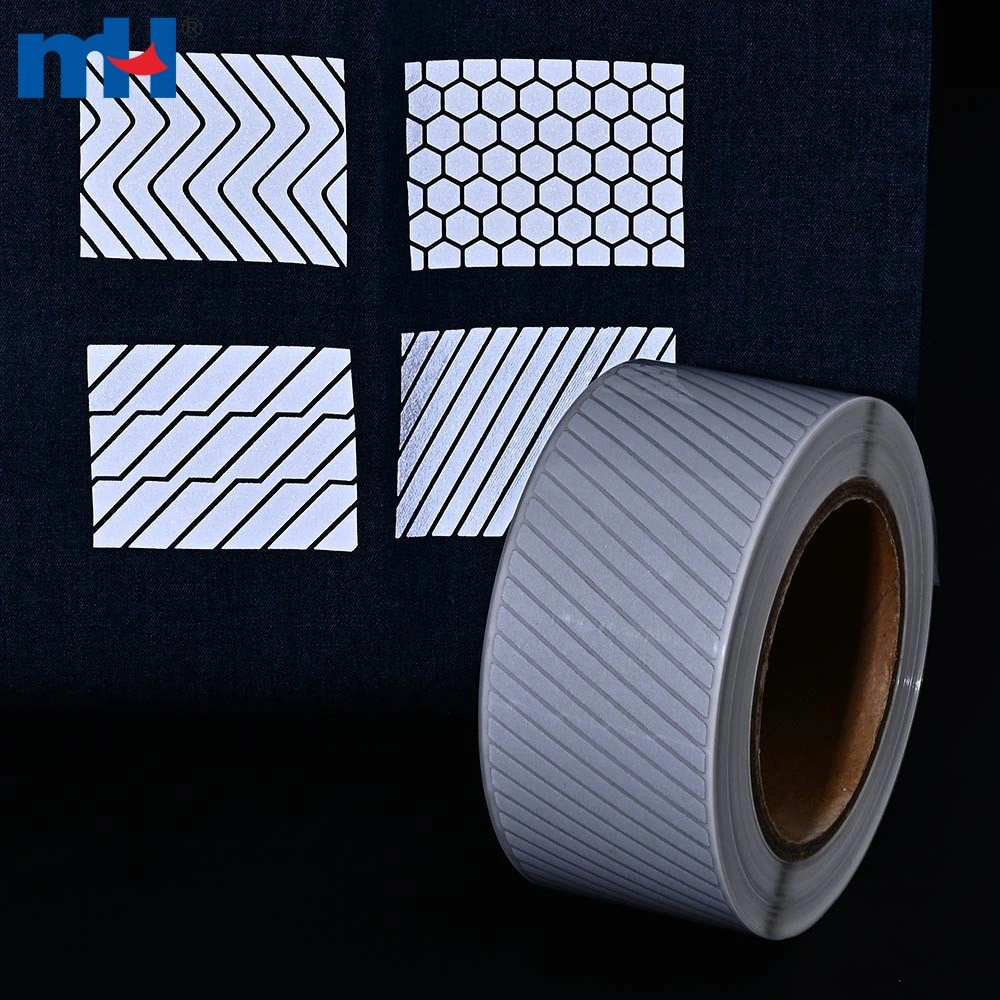

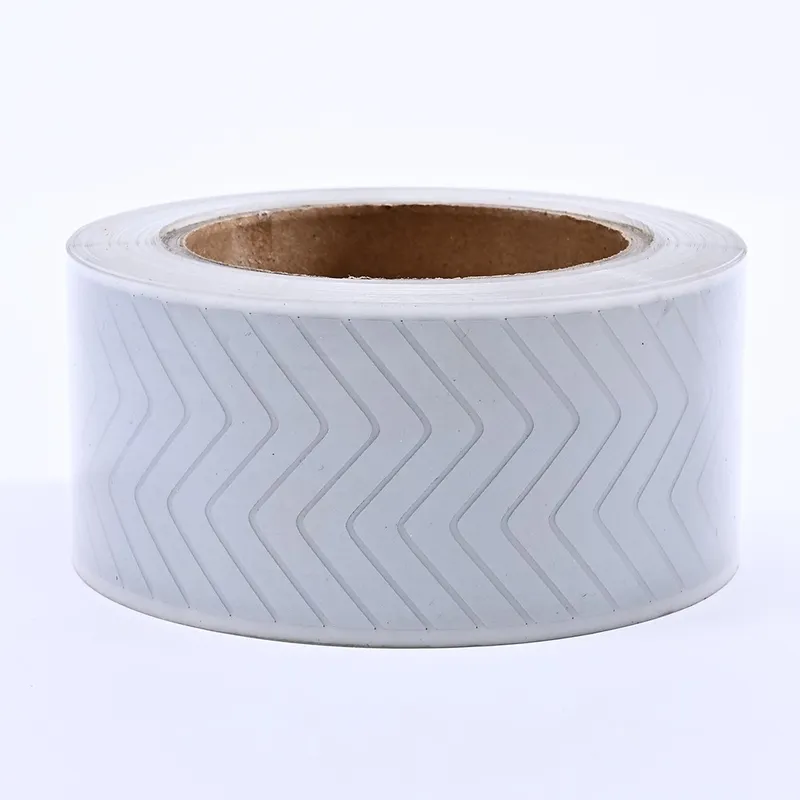

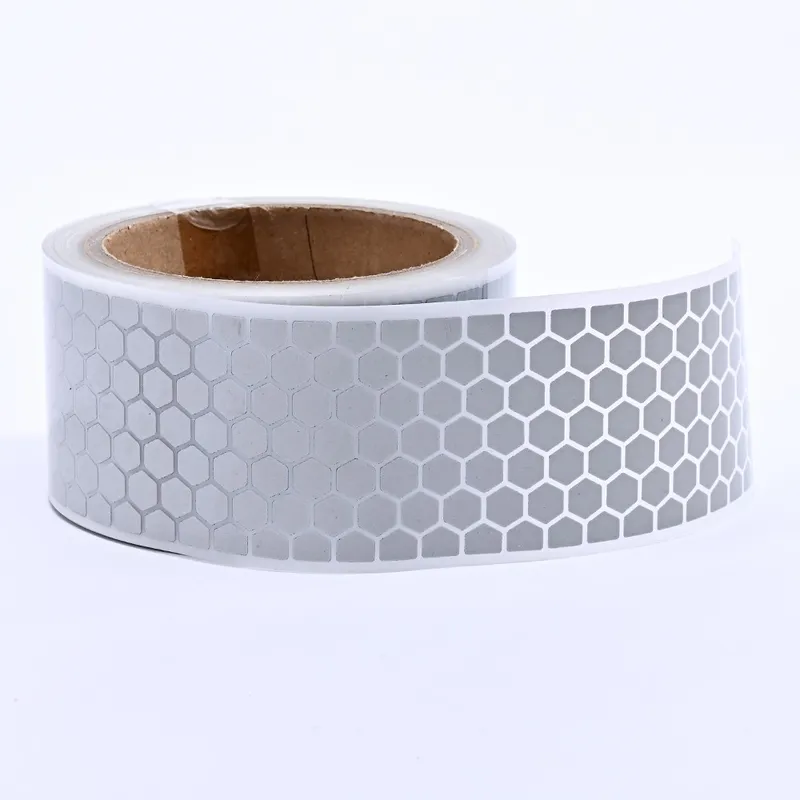

Surface Pattern: Diagonal / Honeycomb / Arrow / Geometric Patterns
Features:
High reflectivity for enhanced visibility and safety
Compatible with cutting plotters for custom designs and lettering
Strong heat transfer adhesion – no peeling
Multiple textured patterns for a premium visual effect
Flexible and easy to apply on various fabrics
Wash-resistant and durable for long-term use
Applications: Ideal for safety garments, workwear, sportswear, cycling wear, uniforms, and outdoor apparel
Reflective Tape Technical Index
Parameter | Description | Typical Value/Standard |
Retroreflectivity (RA, cd/lx/m²) | Measures brightness at night—higher values indicate stronger reflection. | - Standard: ≥50 (EN ISO 20471) |
Observation Angle | Reflectivity decreases as the light source angle increases (e.g., 30° or 45°). | Tested at 0° (direct), 30°, and 45° angles. |
Color & Colorfastness | Reflective colors (silver, fluorescent yellow/orange/red) and fade resistance. | AATCC or ISO 105-B02 colorfastness tests. |
Wash Resistance | Retroreflectivity retention after washing. | ≥70% after 50 washes (EN ISO 6330). |
Abrasion Resistance | Wear resistance (e.g., Martindale test). | ≥10,000 cycles (ASTM D4966). |
Temperature Range | Operational limits. | -30°C to 70°C (no cracking or delamination). |
UV Resistance | Performance retention under sunlight. | ≤10% reflectivity loss after 500h QUV. |
Reflective Tape Performance & Care Specifications
Retroreflective coefficient | 20-450cd/lux.m2 |
Care guide | Home washing 25times at 60℃; Dry-washing 5 times |
Certificate | EN471 CLASS Ⅱ; ANSI/ISEA 107-2010 CLASS Ⅱ; OEKO-TEX 100 |
Feature | Abrasion resistance; Washing resistance; Soft and lightweight |
Customization Services
Retroreflectivity Customization
The reflectivity of reflective tape refers to its ability to reflect light, offers a reflectivity range of 30 to 500 CPL, higher values mean brighter nighttime visibility for enhanced safety across applications from workwear to traffic signs.
CPL≤30
100≤CPL≤150
260≤CPL≤330
400≤CPL≤500
Type Customization
Reflective tapes come in various types, including polyester, fabric, tc, oxford, flame retardant, and heat transfer, each offering different levels of reflectivity and durability for specific applications.
Polyester Reflective Tape
T/C Reflective Tape
Fabric Reflective Tape
Flame Retardant Reflective Tape
Woven Reflective Caution Tape
Reflective Stitching Caution Tape
Oxford Caution Tape
Flame Retardant Reflective Caution Tape
Reflective Grid Tape
Reflective Grid Tape
Heat Transfer Reflective Film
Reflective Woven Film
Usage
Reflective tape is used to improve visibility and safety in various applications, including traffic signs, vehicles, workwear, and outdoor gear, especially in low-light conditions.
Other Webbing & Tape Products
We provide a wide array of webbing and tape solutions, such as Bias Tape, Elastic Tape/Braid, Hook and Loop, PP Webbing Tape, Cotton/Poly/TC Webbing, Webbing for Bags & Cases, Sofa Webbing Tape, and reflective tape. Our range includes different widths and colors to meet the varied needs of our clientele.
Related Products
You may also like
Reflective Tape/Vest

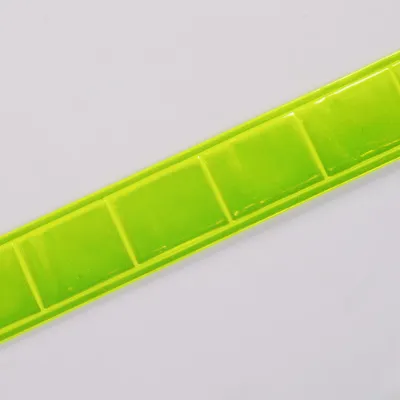

1 inch PVC Hi-Vis Reflective Crystal Tape for Warning
View product →
Reflective Tape/Vest
5×2cm High-Vis Sewn-On Oxford Reflective Tape
View product →Featured
Reflective Tape/Vest
Reflective Tape for Clothing - High Visibility Safety
View product →
Reflective Tape/Vest

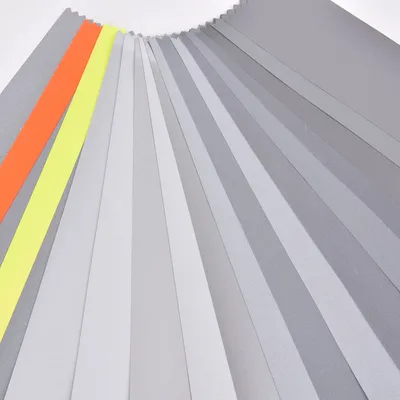

Sew-On High-Visibility Retro-Reflective Safety Tape
