PVC Reflective Tape with 5cm Grid-Pattern Surface
5cm PVC Reflective Grid Tape
Model: 6807-2002
Backing Fabric Material: | PVC |
Width: | 5.0cm |
Type: | Reflective Grid Tape |
Color: | Yellow (custom ones available) |
Packaging: | 50-200m/roll |
MOQ: |
|
MH Reflective Tape Factory
50,000m²
Plant Area
$10 million
Annual Sales Amount
500,000m²
Month Production
About Ningbo MH
MH specializes in garment accessories and fabrics, offering high-quality solutions for the textile and home décor industries. With advanced automated warehousing, MH ensures efficient supply chain management and provides comprehensive after-sales support, exclusively serving businesses, not individuals.
1999
Since
$871Million
Annual Sales (2025)
40+
Branch Offices
600+
Office Staffs
Product Details
Size: 5.0cm
Color: Yellow

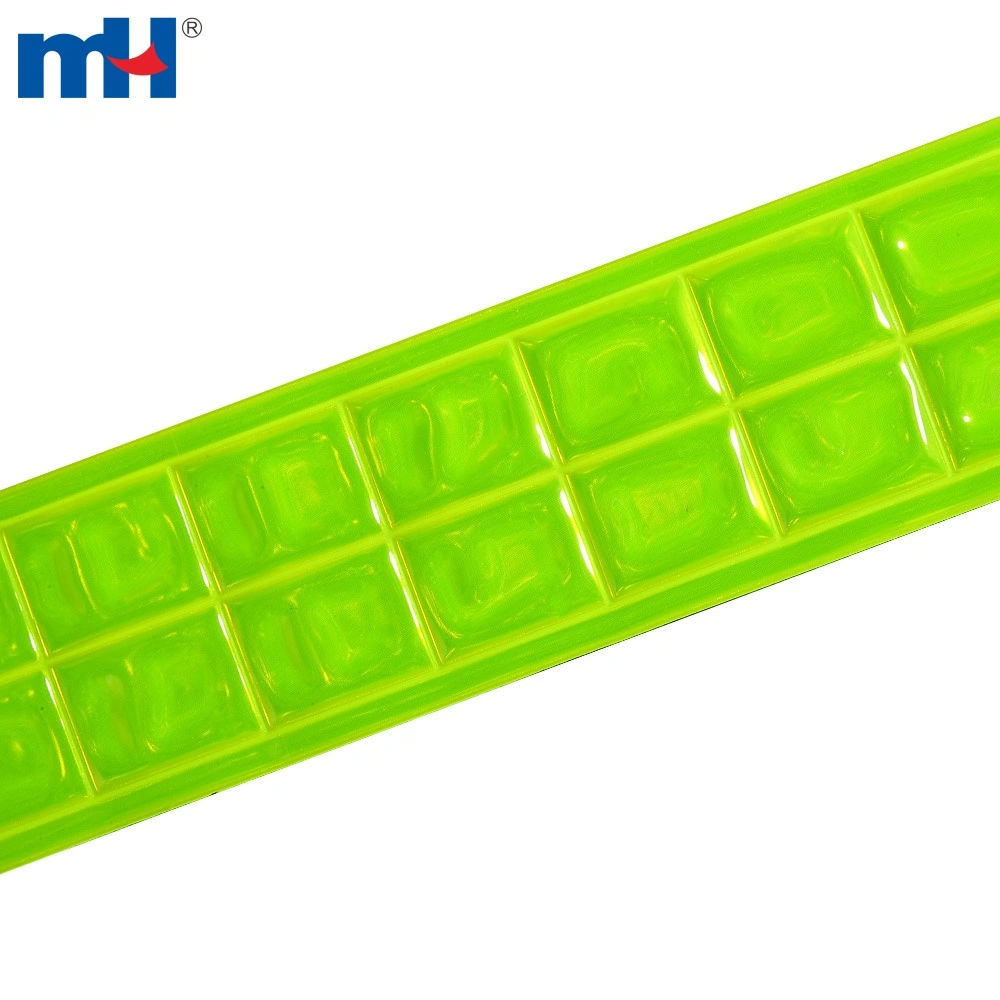

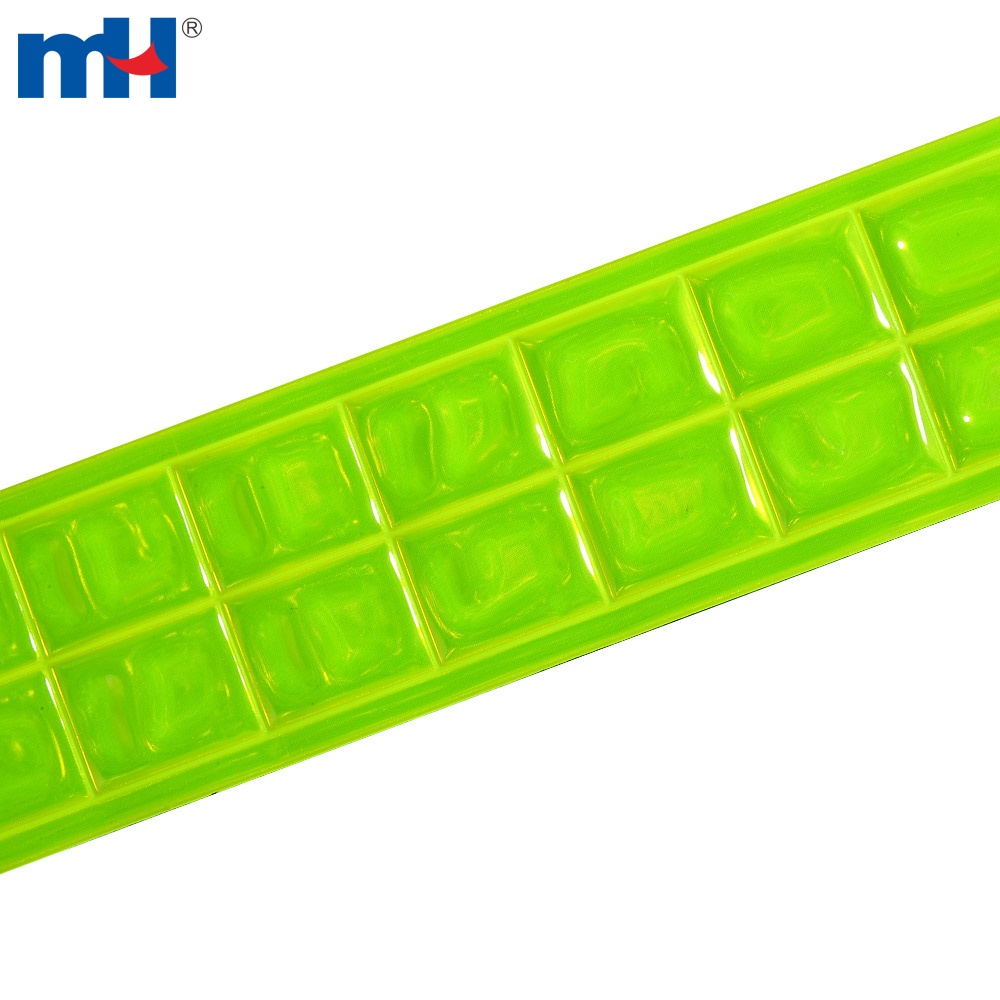

The reflective tape uses PVC material with a surface covered in grid patterns.
MH PVC reflective grid tape is a 5cm wide safety trim made from PVC with a grid-patterned reflective surface, retaining roughly 75% of its reflectivity after long-term use.
The PVC construction resists aging and friction better than fabric-backed reflective tapes and stands up to repeated water washing, industrial washing and dry cleaning without the reflective layer lifting off.
Key Selling Points
Grid-pattern PVC surface: The textured grid finish gives MH's PVC reflective tape a distinct look compared to smooth heat-transfer or woven reflective trims.
Aging and friction resistant: PVC construction holds up to repeated wear and handling better than lighter fabric-backed reflective tapes.
Wash-durable reflectivity: The tape retains the majority of its reflective performance after repeated water washing, industrial washing or dry cleaning.
Certified visibility standard: Meets EN471 Class II and ANSI/ISEA 107-2010 Class II for documented high-visibility compliance.
This reflective tape is aging and friction-resistant, as well as washable.
Even after repeated washing, whether it be water washing, industrial washing, or dry cleaning, the reflective tape will not fall off and will remain as much as 75% effective after long-term usage.
Reflective Tape Technical Index
Parameter | Description | Typical Value/Standard |
Retroreflectivity (RA, cd/lx/m²) | Measures brightness at night—higher values indicate stronger reflection. | - Standard: ≥50 (EN ISO 20471) |
Observation Angle | Reflectivity decreases as the light source angle increases (e.g., 30° or 45°). | Tested at 0° (direct), 30°, and 45° angles. |
Color & Colorfastness | Reflective colors (silver, fluorescent yellow/orange/red) and fade resistance. | AATCC or ISO 105-B02 colorfastness tests. |
Wash Resistance | Retroreflectivity retention after washing. | ≥70% after 50 washes (EN ISO 6330). |
Abrasion Resistance | Wear resistance (e.g., Martindale test). | ≥10,000 cycles (ASTM D4966). |
Temperature Range | Operational limits. | -30°C to 70°C (no cracking or delamination). |
UV Resistance | Performance retention under sunlight. | ≤10% reflectivity loss after 500h QUV. |
Reflective Tape Performance & Care Specifications
Retroreflective coefficient | 20-450cd/lux.m2 |
Care guide | Home washing 25times at 60℃; Dry-washing 5 times |
Certificate | EN471 CLASS Ⅱ; ANSI/ISEA 107-2010 CLASS Ⅱ; OEKO-TEX 100 |
Feature | Abrasion resistance; Washing resistance; Soft and lightweight |
Customization Services
Retroreflectivity Customization
The reflectivity of reflective tape refers to its ability to reflect light, offers a reflectivity range of 30 to 500 CPL, higher values mean brighter nighttime visibility for enhanced safety across applications from workwear to traffic signs.
CPL≤30
100≤CPL≤150
260≤CPL≤330
400≤CPL≤500
Type Customization
Reflective tapes come in various types, including polyester, fabric, tc, oxford, flame retardant, and heat transfer, each offering different levels of reflectivity and durability for specific applications.
Polyester Reflective Tape
T/C Reflective Tape
Fabric Reflective Tape
Flame Retardant Reflective Tape
Woven Reflective Caution Tape
Reflective Stitching Caution Tape
Oxford Caution Tape
Flame Retardant Reflective Caution Tape
Reflective Grid Tape
Reflective Grid Tape
Heat Transfer Reflective Film
Reflective Woven Film
Usage
Reflective tape is used to improve visibility and safety in various applications, including traffic signs, vehicles, workwear, and outdoor gear, especially in low-light conditions.
