Compact Brass Grommet Eyelets with 9.5mm Outer Diameter

About Ningbo MH

MH specializes in garment accessories and fabrics, offering high-quality solutions for the textile and home décor industries. With advanced automated warehousing, MH ensures efficient supply chain management and provides comprehensive after-sales support, exclusively serving businesses, not individuals.

View More About MH Company →

• 1999

  Since

• $871Million

  Annual Sales

• 40+

  Branch Offices

• 600+

  Staffs

Product Details

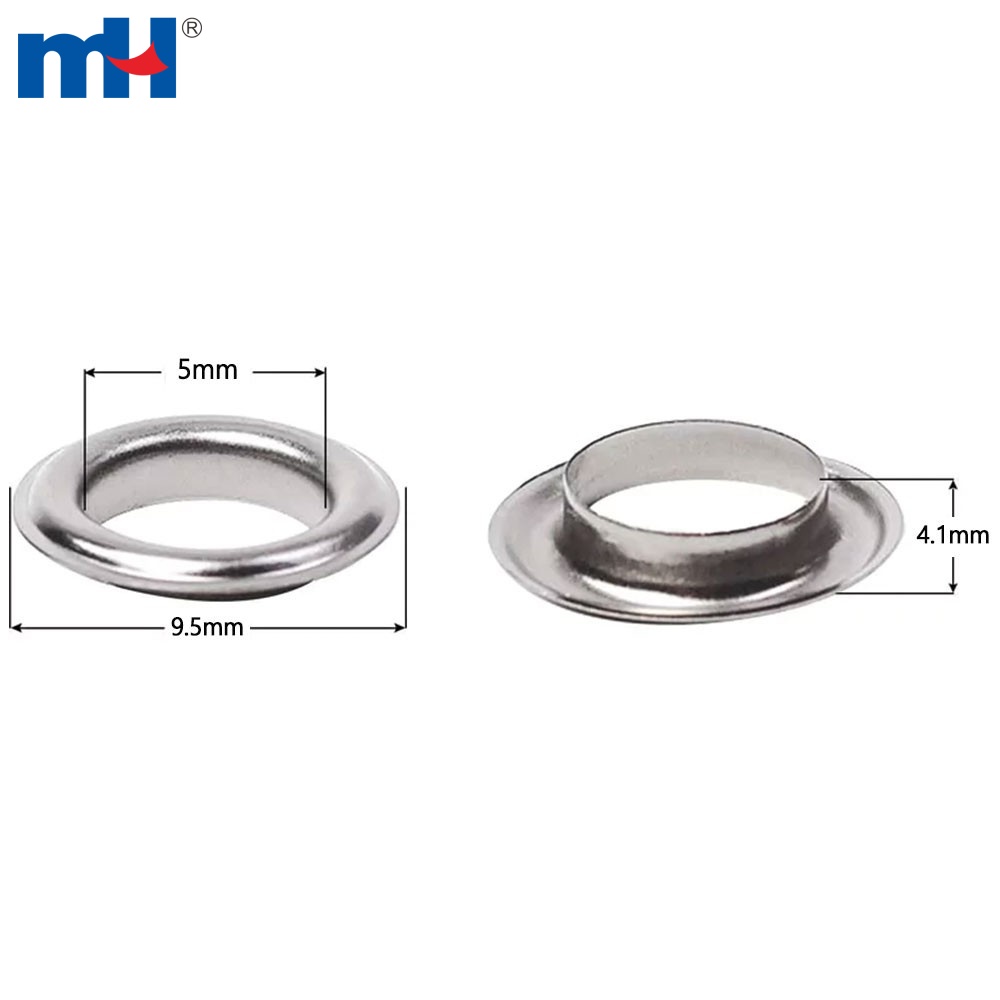

Size: OD 9.5mm × ID 5mm × Height 4.1mm

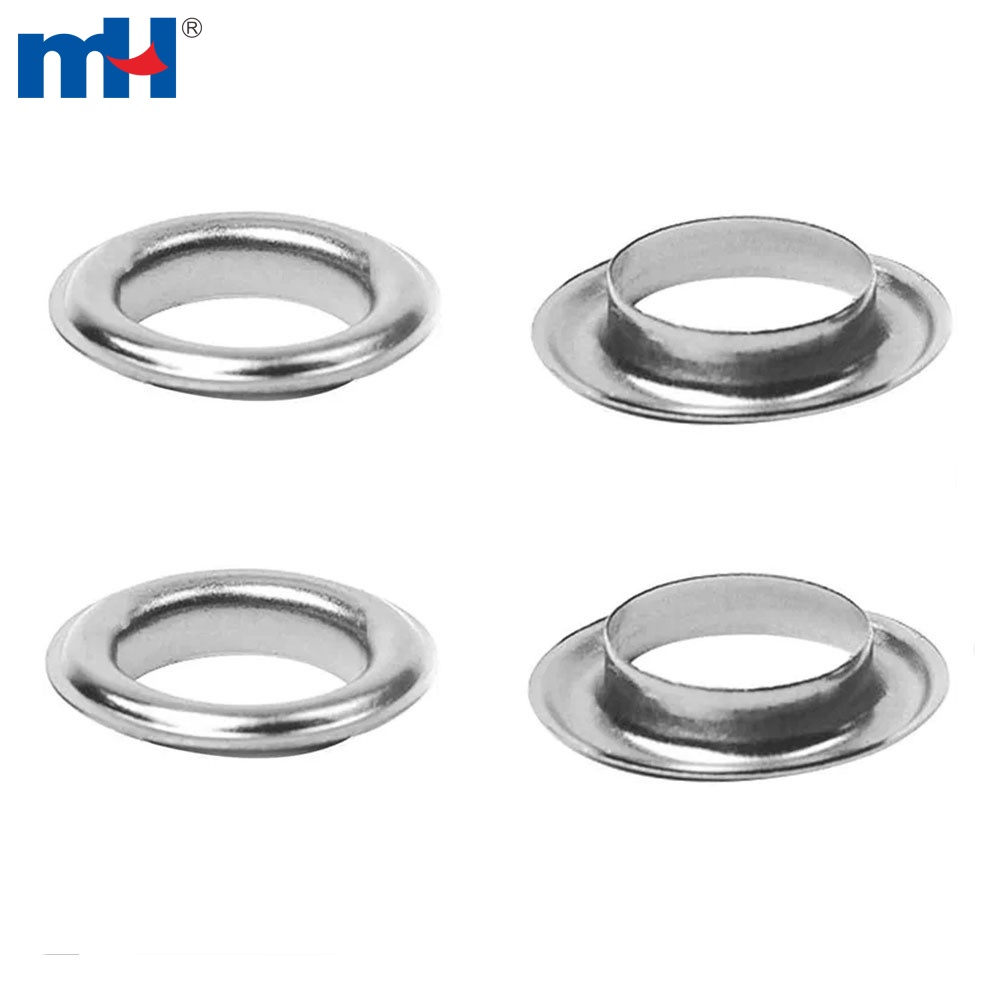

MH brass grommet eyelet is a compact metal eyelet with a 5 mm inner diameter and a 9.5 mm outer flange, formed from corrosion-resistant brass to reinforce small punched holes. Standing 4.1 mm high, it is small enough for lightweight garments and trims yet strong enough to hold shape once set with a standard eyelet machine.

Known also as a grommet, the eyelet lines a hole so a cord, lace, or drawstring can pass through without tearing the surrounding material. MH produces it in natural brass, nickel-plated, and antique finishes for garments, footwear, bags, leather goods, curtains, and light-duty tarpaulins, with custom sizes available for specific builds.

Features:

• Premium brass material – excellent corrosion resistance, ideal for humid environments

• Smooth surface finish – clean appearance, enhances product quality

• Strong and durable – maintains shape under pressure, long-lasting performance

• Easy installation – compatible with standard eyelet setting machines

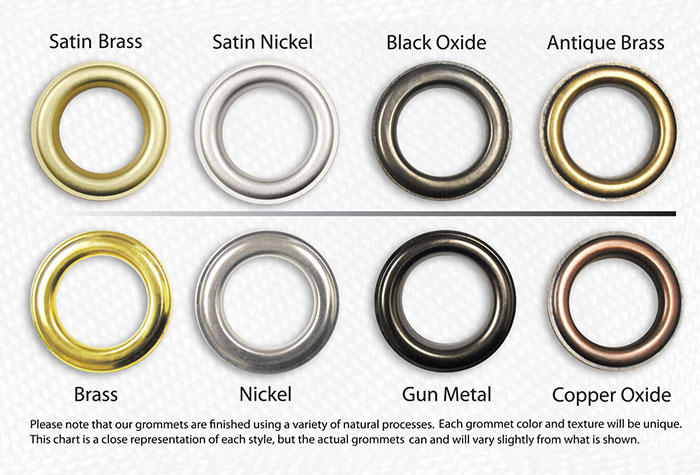

• Color options available – natural brass, nickel-plated, antique finish, etc.

Applications:

Widely used in:

• Garments & footwear

• Bags & leather goods

• Curtains & home textiles

• Craft and DIY products

• Light-duty tarpaulins and accessories

Eyelets Description Also known as grommets, eyelets are small metal barrels that are inserted into holes in thin materials, and typically have a line (rope, wire, etc.) run through them. This hardware prevents tearing and abrasion of the material into which they’re installed, and provide protection for the wire, cable, or other line. Generally compatible with textiles, sheet metal, wood, plastics, and composite materials, eyelets have one or both ends flanged to keep them in place after installation.

Eyelet Style

Customization Services

Material Customization

Iron

Brass

Plastic

Size Customization

Inner dia.: 3mm--50mm

The inner diameter of eyelets ranges from 3 mm to 50 mm, suitable for various materials and uses. Custom sizes are also available for specific needs.

Style Customization

MH eyelets come in a variety of styles, including Standard, Cut-Style, Net-Style, and Slotted Eyelets, each designed to serve a specific purpose.

Eyelet

Cut-style Eyelet

Net-style Eyelet

Slotted Eyelet

Technics Customization

MH Eyelets are available in different surface finishes technics, such as electroplating and painting, offering both durability and decorative effects.

Application
