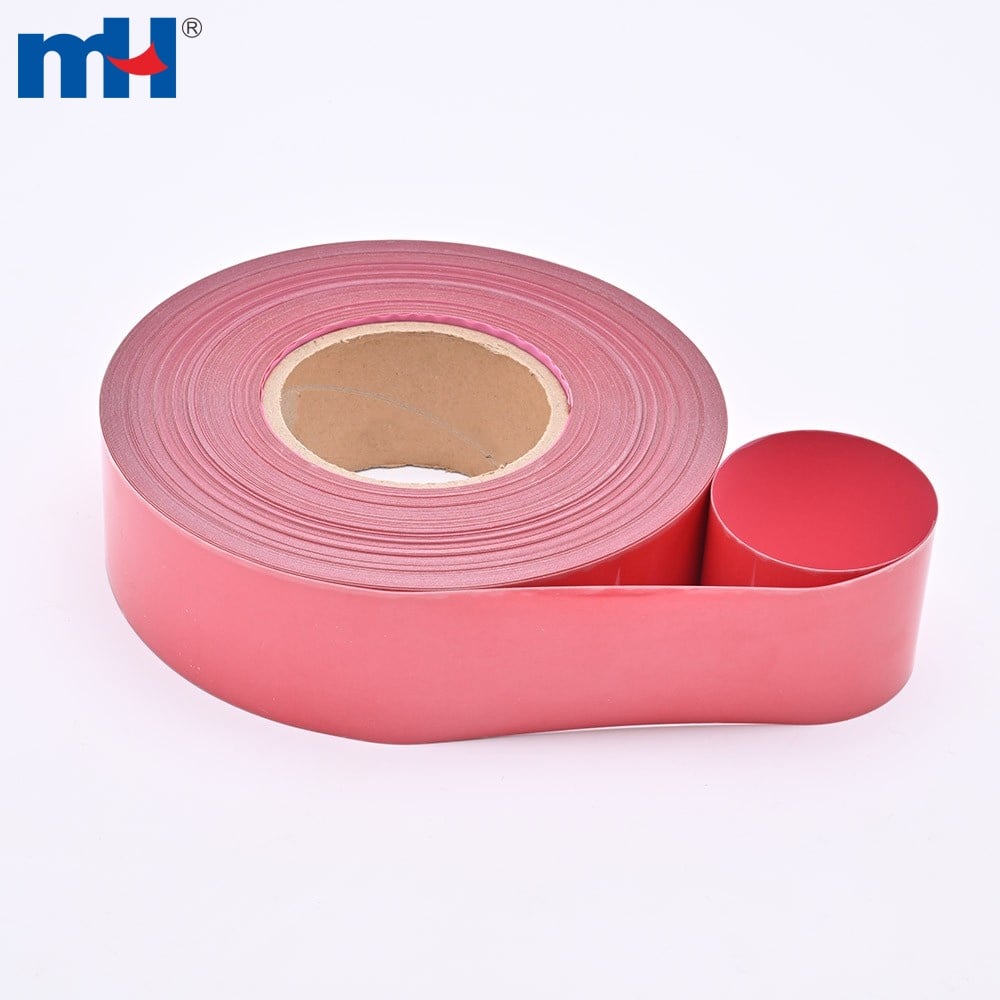

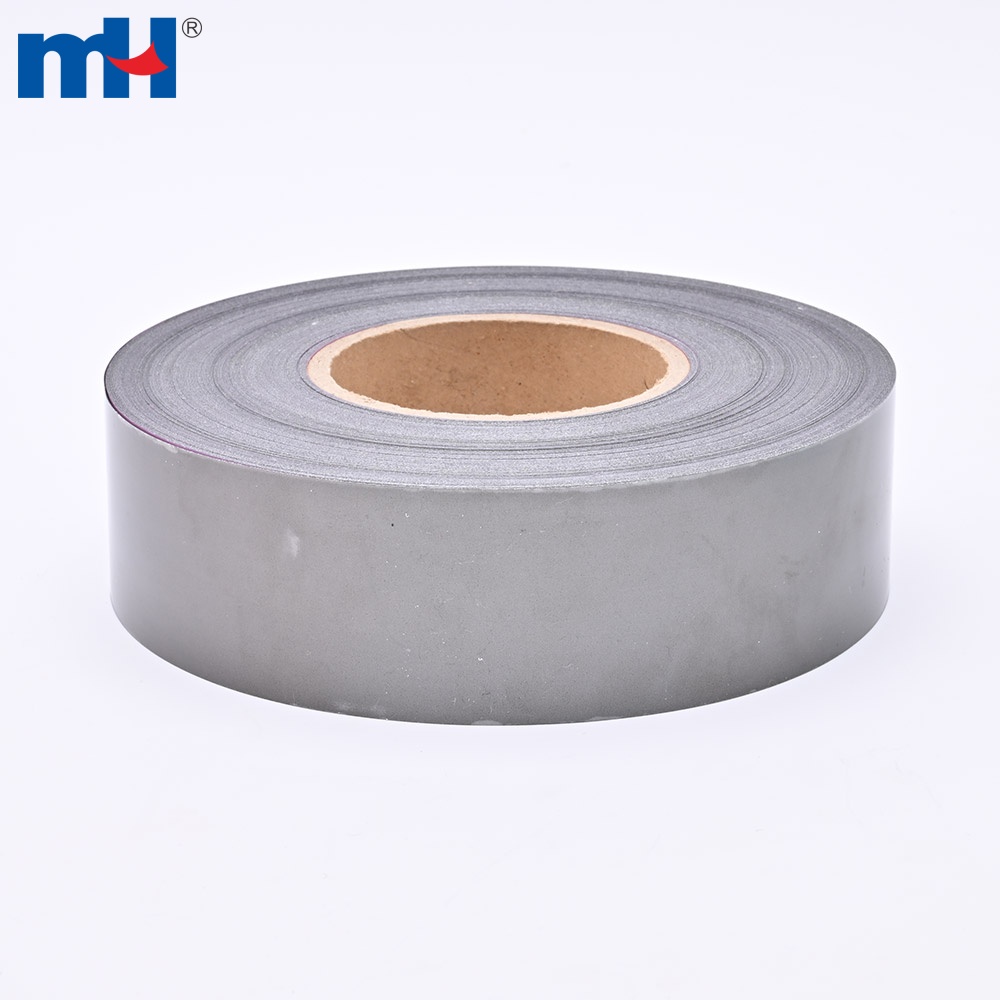

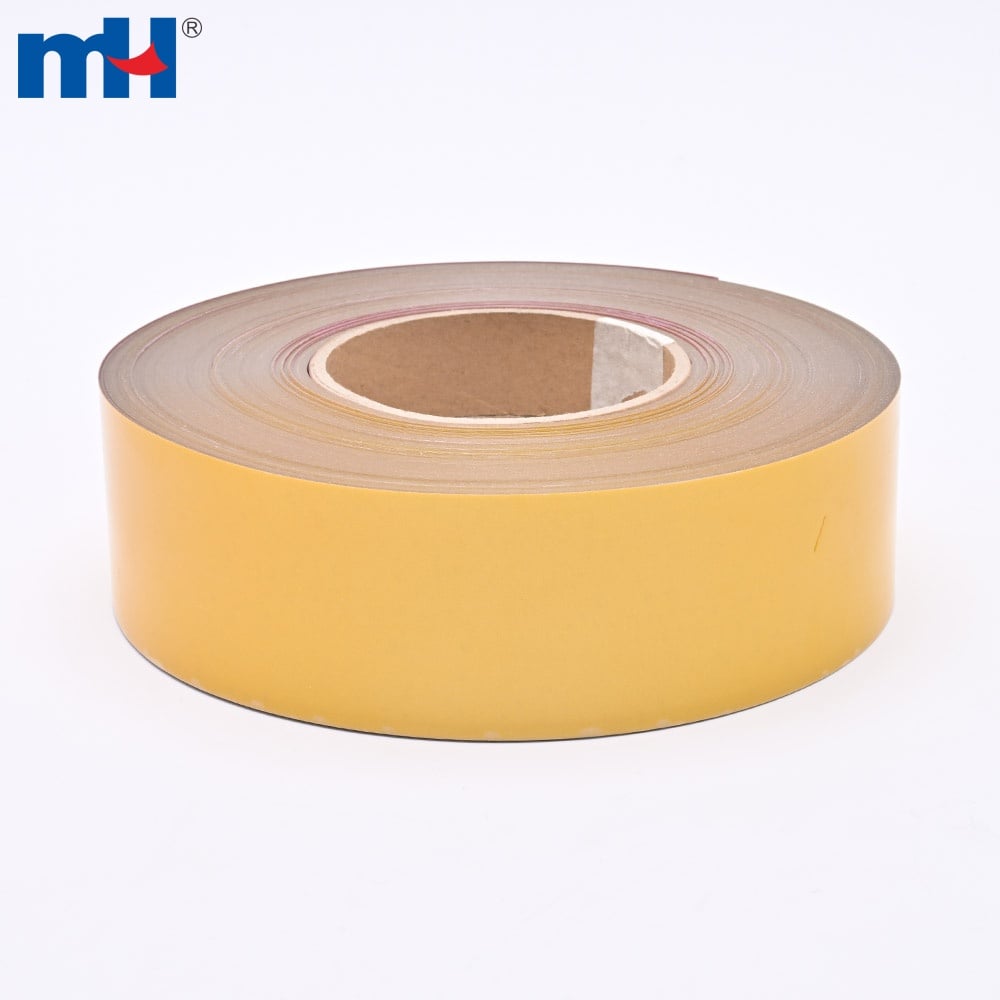

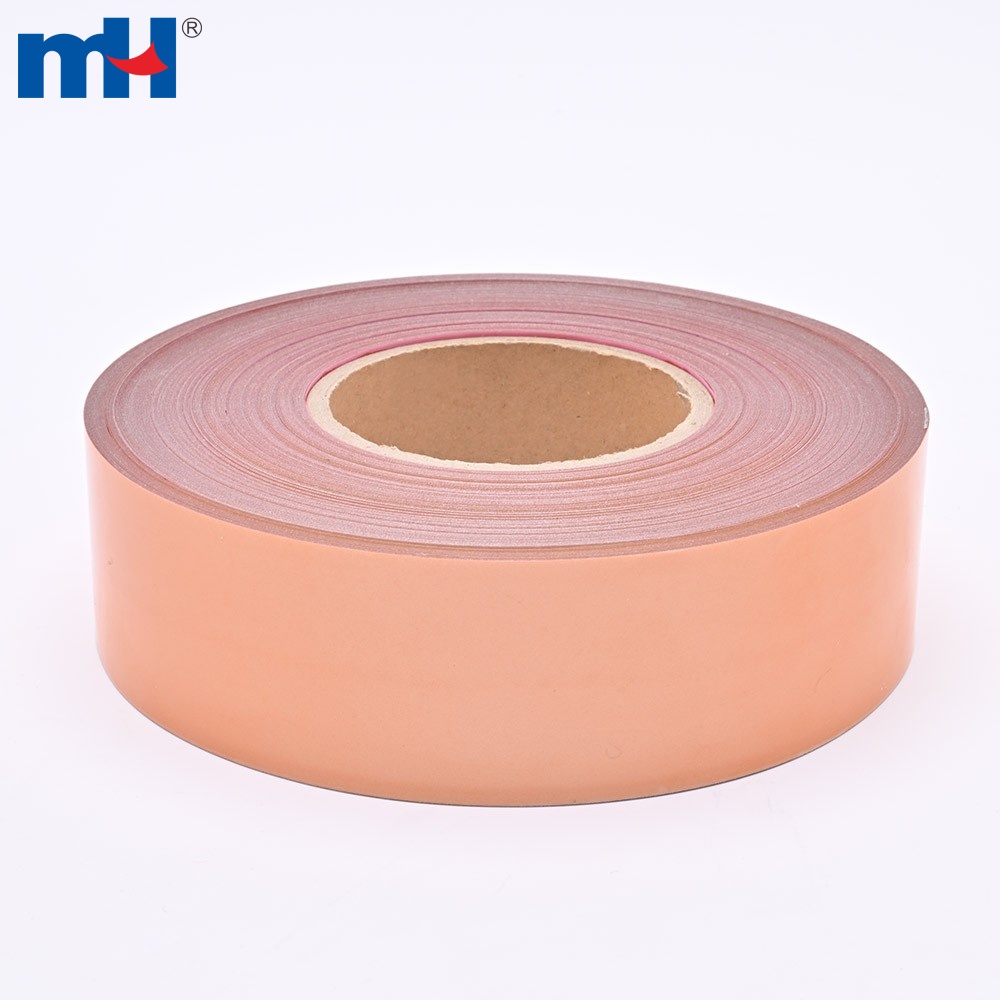

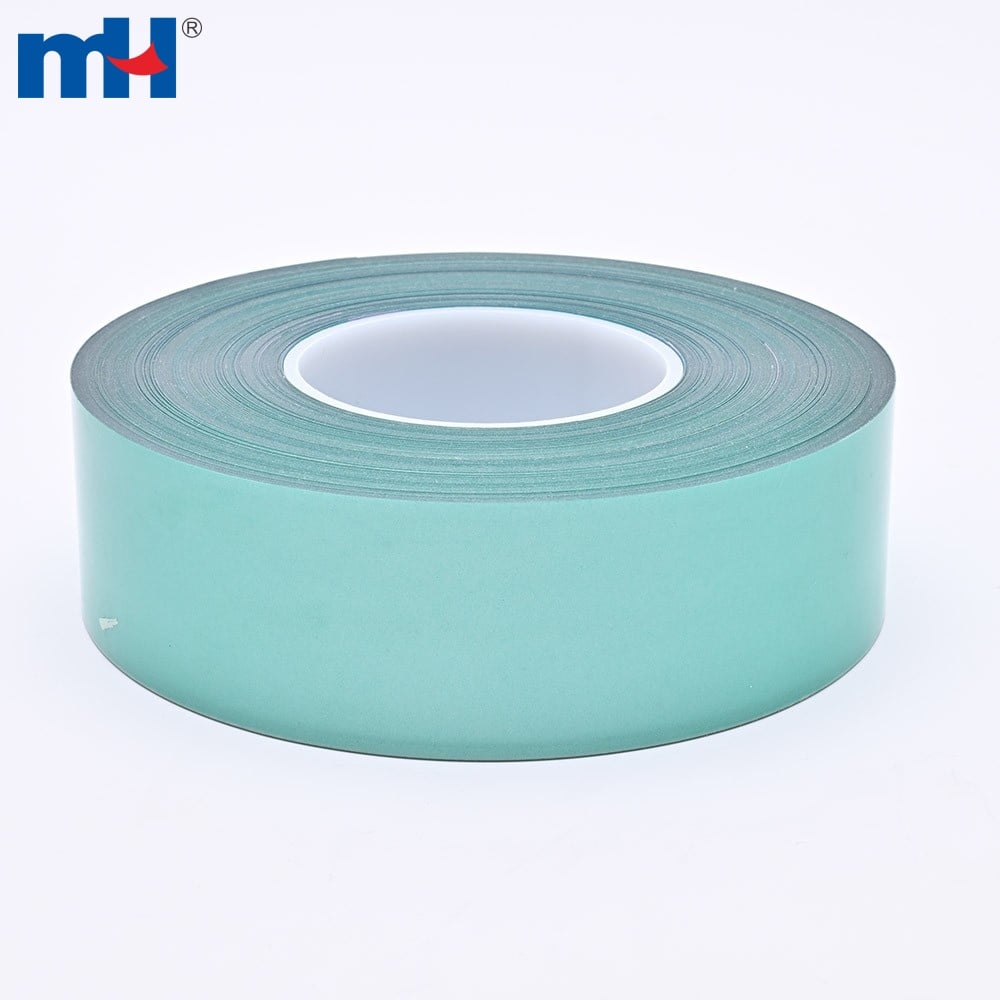

Colorful High-Vis TPU Elastic Reflective Heat-Transfer Tape 5cm
TPU Elastic Reflective Heat-Transfer Tape 5cm
Model: 6804-1030
Backing Fabric Material: | TPU elastic film |
Width: | 5cm |
CPL: | 400≤CPL≤500 |
Type: | TPU Elastic Reflective Heat-Transfer Tape |
Color: | Grey, Silver, Yellow, Orange (custom ones available) |
Packaging: | 50-200m/roll |
MOQ: |
|
Product Details

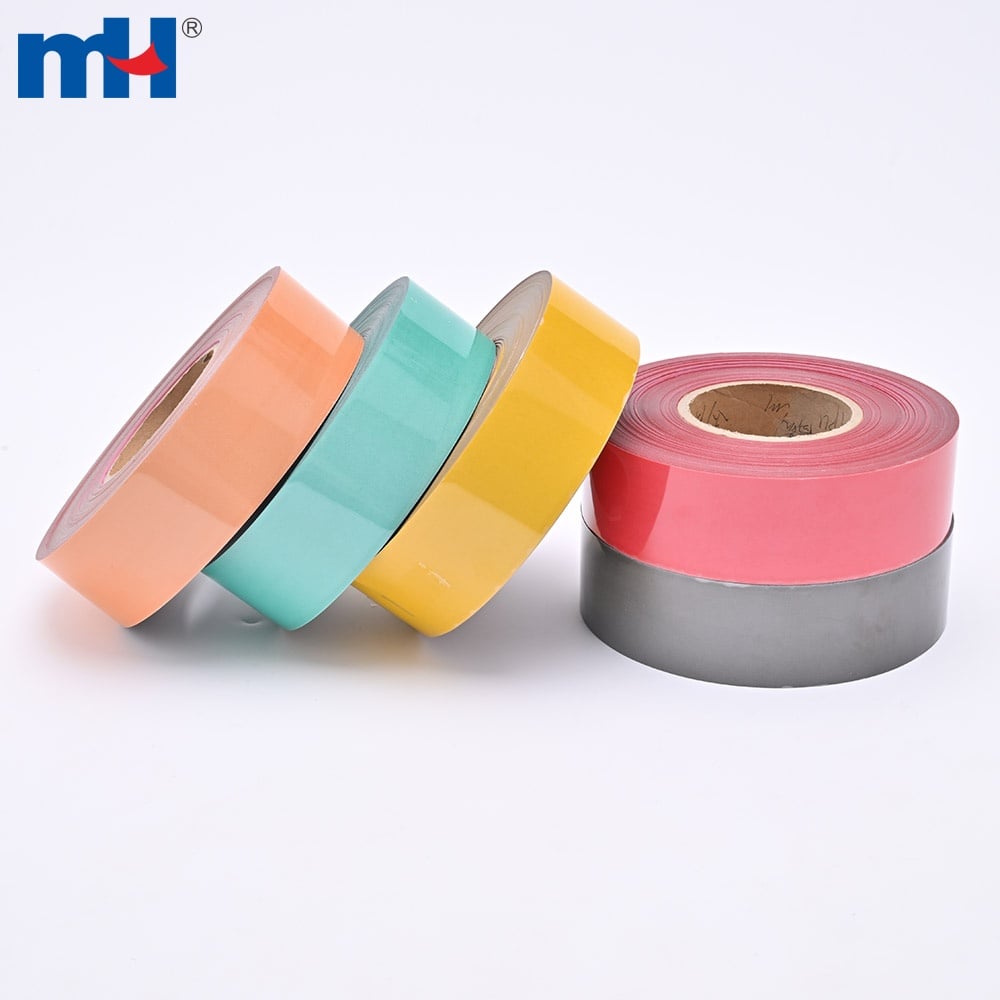

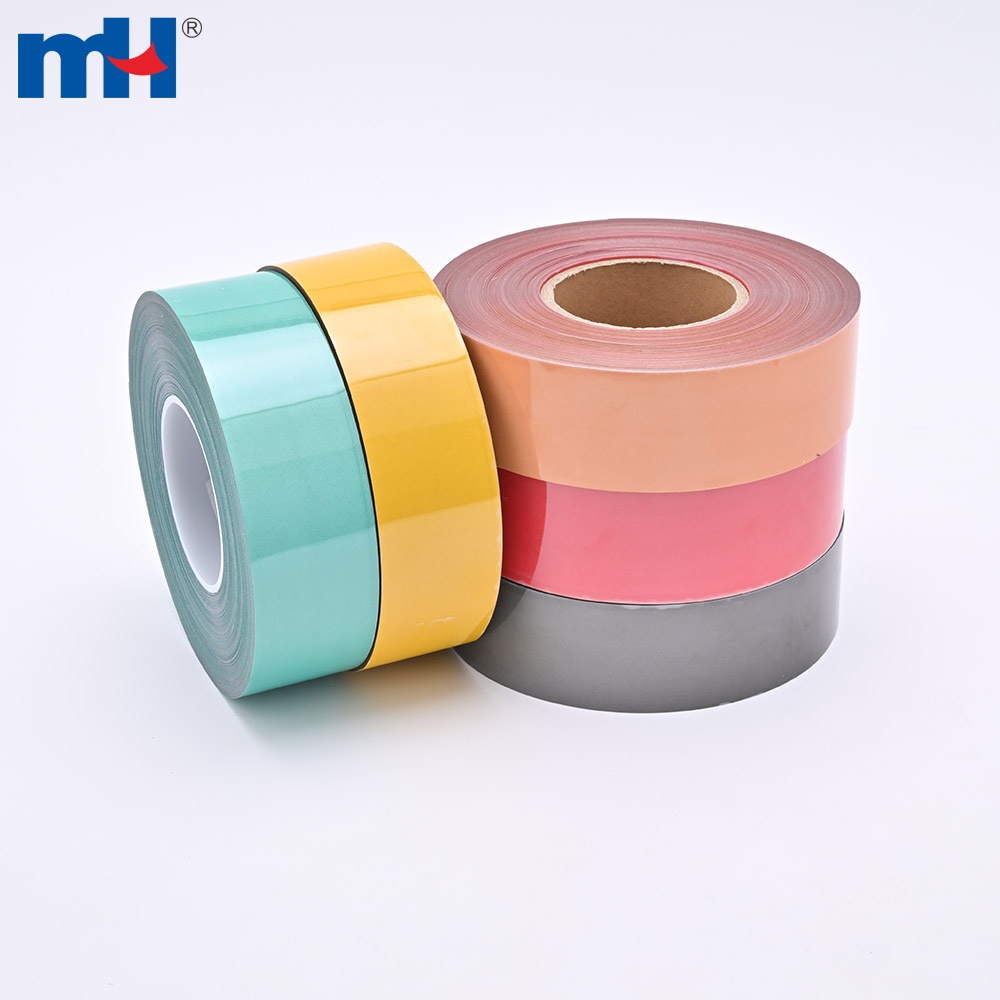

Color: Colorful / Multiple colors available
Backing material: TPU elastic film
TPU elastic reflective heat-transfer tape can be applied directly to garments, sportswear, and safety clothing using heat press equipment, without the need for sewing. The elastic TPU film backing ensures the tape stretches with the base fabric for a seamless, durable finish.
Available in multiple vibrant colors, this tape delivers high-brightness retroreflection and is suitable for decorative as well as functional safety applications on clothing, bags, sportswear, and accessories.
Reflective Tape Technical Index
Parameter | Description | Typical Value/Standard |
Retroreflectivity (RA, cd/lx/m²) | Measures brightness at night—higher values indicate stronger reflection. | - Standard: ≥50 (EN ISO 20471) |
Observation Angle | Reflectivity decreases as the light source angle increases (e.g., 30° or 45°). | Tested at 0° (direct), 30°, and 45° angles. |
Color & Colorfastness | Reflective colors (silver, fluorescent yellow/orange/red) and fade resistance. | AATCC or ISO 105-B02 colorfastness tests. |
Wash Resistance | Retroreflectivity retention after washing. | ≥70% after 50 washes (EN ISO 6330). |
Abrasion Resistance | Wear resistance (e.g., Martindale test). | ≥10,000 cycles (ASTM D4966). |
Temperature Range | Operational limits. | -30°C to 70°C (no cracking or delamination). |
UV Resistance | Performance retention under sunlight. | ≤10% reflectivity loss after 500h QUV. |
Reflective Tape Performance & Care Specifications
Retroreflective coefficient | 20-450cd/lux.m2 |
Care guide | Home washing 25times at 60℃; Dry-washing 5 times |
Certificate | EN471 CLASS Ⅱ; ANSI/ISEA 107-2010 CLASS Ⅱ; OEKO-TEX 100 |
Feature | Abrasion resistance; Washing resistance; Soft and lightweight |
Usage
Reflective tape is used to improve visibility and safety in various applications, including traffic signs, vehicles, workwear, and outdoor gear, especially in low-light conditions.
