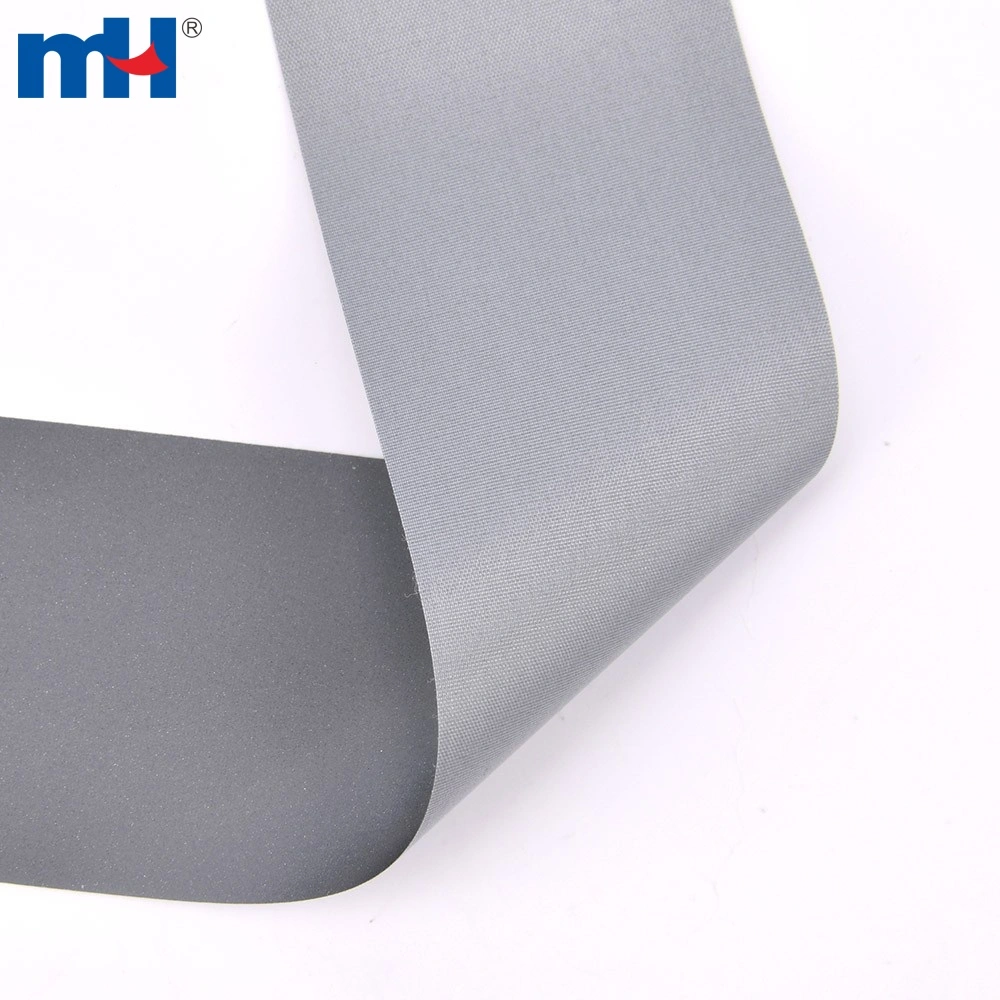

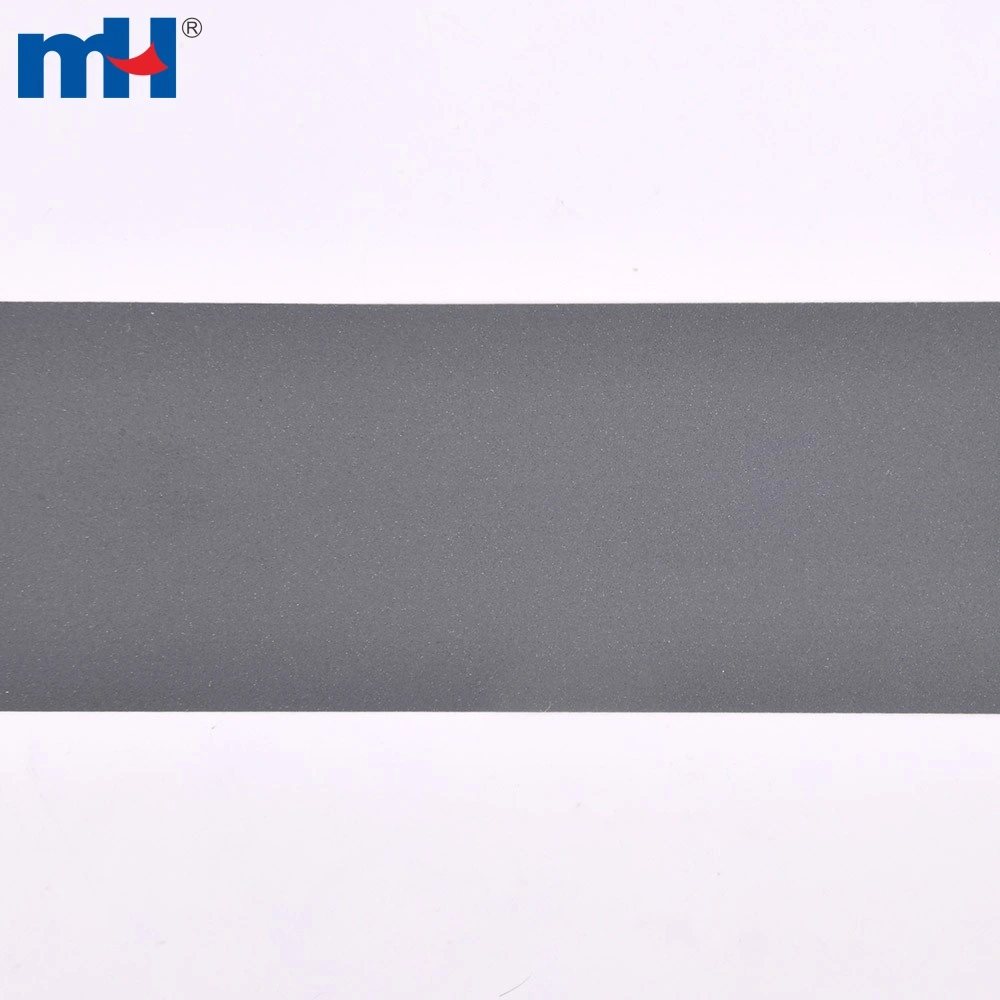

5cm High Visibility Reflective Fabric Tape 260≤CPL≤330
- Model6801-2031
| Backing Fabric Material: | 100% Polyester |
| Width: | 5cm |
| CPL: | 260≤CPL≤330 |
| Type: | Polyester Reflective Tape |
| Color: | Grey, Silver, Yellow, Orange (custom ones available) |
| Packaging: | 50-200m/roll |
| MOQ: |
|
◆ Lead Time: 25-35 days
◆ Shipping: Sea freight, Railway freight
◆ Payment: T/T, L/C ...
Sew-on Safety Reflective Fabric Tape
Product Details
Reflective coefficient: 260≤CPL≤330
Made of 100% polyester, sew on type
Soft and lightweight
Reflective fabric always shows in our daily lives as we all know, such as reflective clothing, safety vests, reflective hats, reflective bags, etc.
Suitable for clothing, equipment, and other high visibility requirements. Reflective products for night visibility.
Reflective Tape Technical Index
| Parameter | Description | Typical Value/Standard |
| Retroreflectivity (RA, cd/lx/m²) | Measures brightness at night—higher values indicate stronger reflection. | - Standard: ≥50 (EN ISO 20471) - High-Intensity: ≥300 (ANSI 107) |
| Observation Angle | Reflectivity decreases as the light source angle increases (e.g., 30° or 45°). | Tested at 0° (direct), 30°, and 45° angles. |
| Color & Colorfastness | Reflective colors (silver, fluorescent yellow/orange/red) and fade resistance. | AATCC or ISO 105-B02 colorfastness tests. |
| Wash Resistance | Retroreflectivity retention after washing. | ≥70% after 50 washes (EN ISO 6330). |
| Abrasion Resistance | Wear resistance (e.g., Martindale test). | ≥10,000 cycles (ASTM D4966). |
| Temperature Range | Operational limits. | -30°C to 70°C (no cracking or delamination). |
| UV Resistance | Performance retention under sunlight. | ≤10% reflectivity loss after 500h QUV. |
Customization Options for Reflective Tapes
To meet diverse industry needs, our reflective tapes offer extensive customization options in shape, material composition, and functionality:
Shape Customization: Precision laser cutting, die-cutting, or perforation techniques allow for tailored designs, including brand logos, striped patterns, or zigzag edges—ideal for fashion branding or high-visibility workwear.
Composite Techniques: Seamless integration with fabrics via heat-sealing, sewing, or laminating (e.g., combining reflective layers with waterproof/breathable membranes) ensures durability for outdoor gear or performance apparel.
Special Features: Flame-resistant (FR) options meet EN 11612 standards for protective clothing, while antimicrobial or stretchable variants (up to 150% elasticity) cater to medical scrubs or activewear.
Reflective Tape Performance & Care Specifications
| Retroreflective coefficient | 20-450cd/lux.m2 |
| Care guide | Home washing 25times at 60℃; Dry-washing 5 times |
| Certificate | EN471 CLASS Ⅱ; ANSI/ISEA 107-2010 CLASS Ⅱ; OEKO-TEX 100 |
| Feature | Abrasion resistance; Washing resistance; Soft and lightweight |
Retroreflectivity Customization
Type Customization
Usage
Reflective tape is used to improve visibility and safety in various applications, including traffic signs, vehicles, workwear, and outdoor gear, especially in low-light conditions.
