Thermal Calendaring PES Double Dots Non Woven Interlining Fabric

1 / 6

PES Double Dots Non Woven Fusible Interlining Supplier

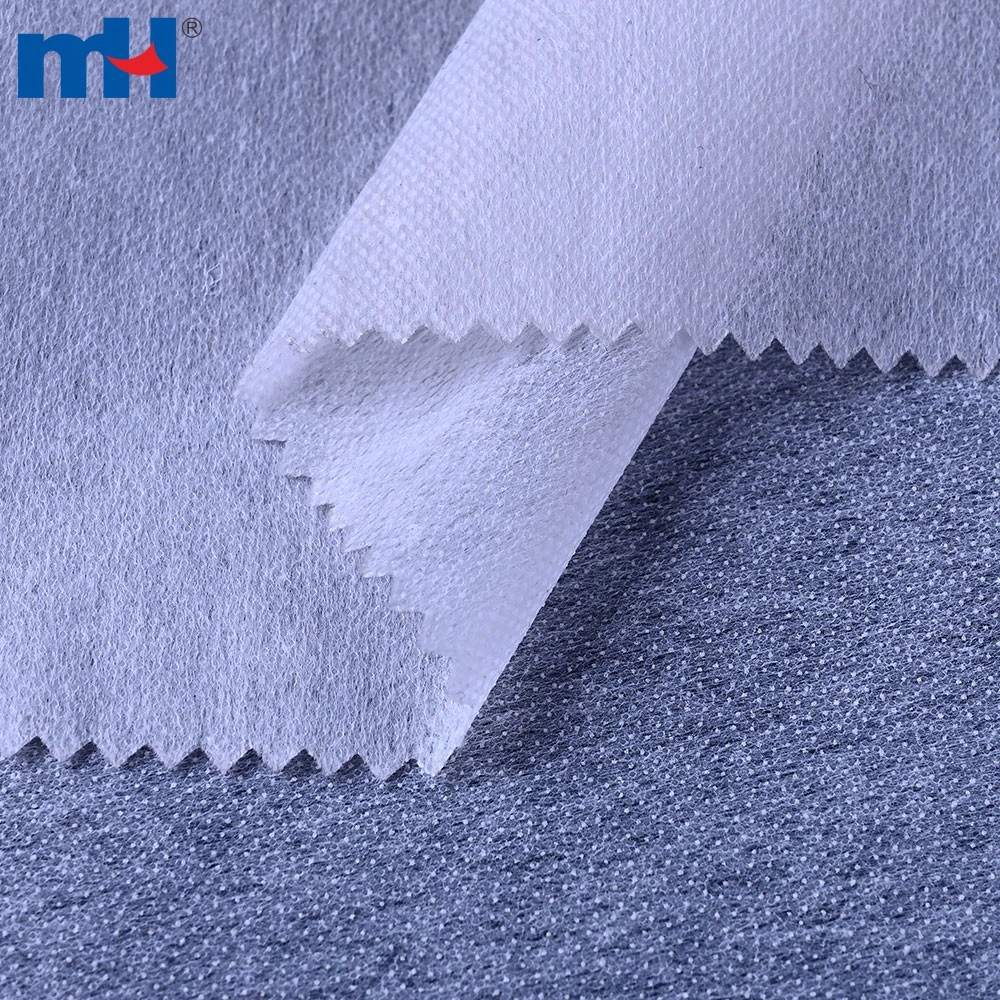

Name: Thermal Calendaring PES Double Dots Non Woven Interlining Fabric
Brand: Ningbo MH Industry Co., Ltd.

Thermal Calendaring Nonwoven Interlining

Thermal Calendaring PES Double Dots Non Woven Interlining Fabric

Model: 6403-0191

Material:	100% Polyester
Width:	150cm, 100cm
Weight:	40g/m², 23g/m²
Color:	Black, white
Glue Powder:	PES

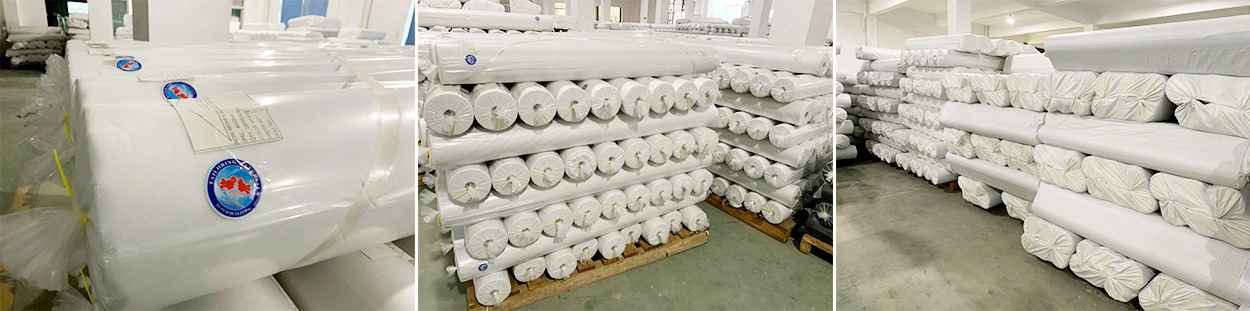

Packaging:	50m/roll, 10roll/sack
MOQ:	MOQ: 5000m/color MOA: 3000 dollars (no restriction on the types of products) Note for High Market Share Regions: West African: 5000 dollars
Certification:	OEKO-TEX® CERTIFIED Download PDF $oeko tex woven interlining qr code$

Lead Time: 25-35 days
Shipping: Sea freight, Railway freight
Payment: T/T, L/C ...

WhatsApp Contact Us

MH Non-woven Interlining Factory

$14 million
Production Capacity
200+
Workers

View More About MH Industrial

About Ningbo MH

MH specializes in garment accessories and fabrics, offering high-quality solutions for the textile and home décor industries. With advanced automated warehousing, MH ensures efficient supply chain management and provides comprehensive after-sales support, exclusively serving businesses, not individuals.

View More About MH Company

1999
Since
$871Million
Annual Sales
40+
Branch Offices
600+
Staffs

Product Details

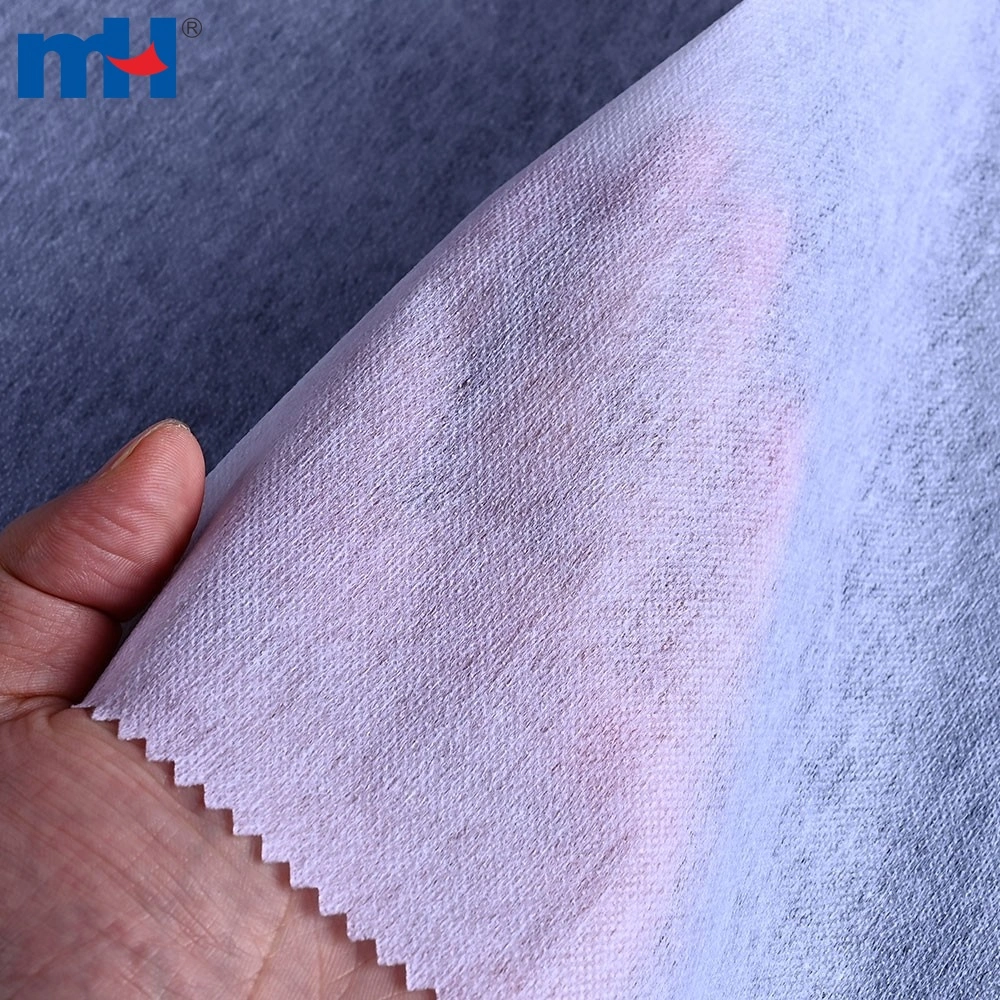

100% Polyester Double Dot Non Woven Fusible Interlining: 40gsm, PES adhesive, 150cm

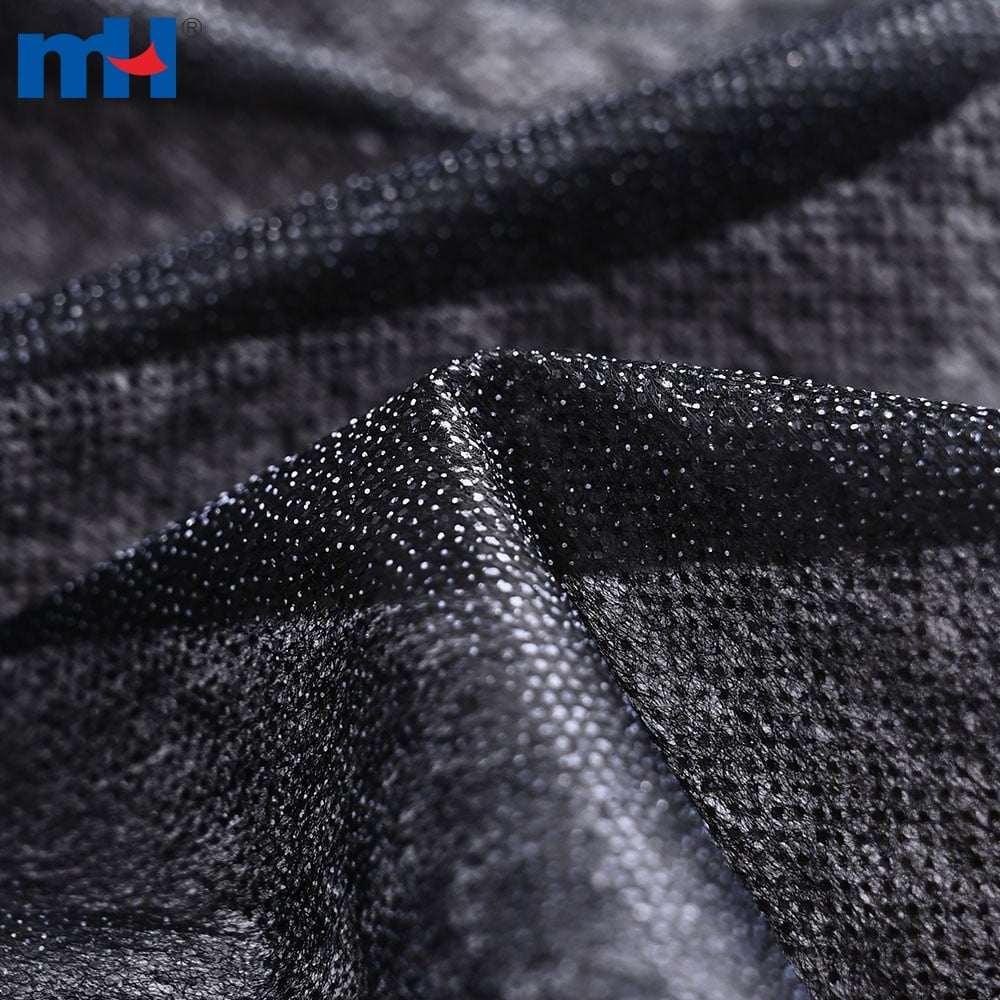

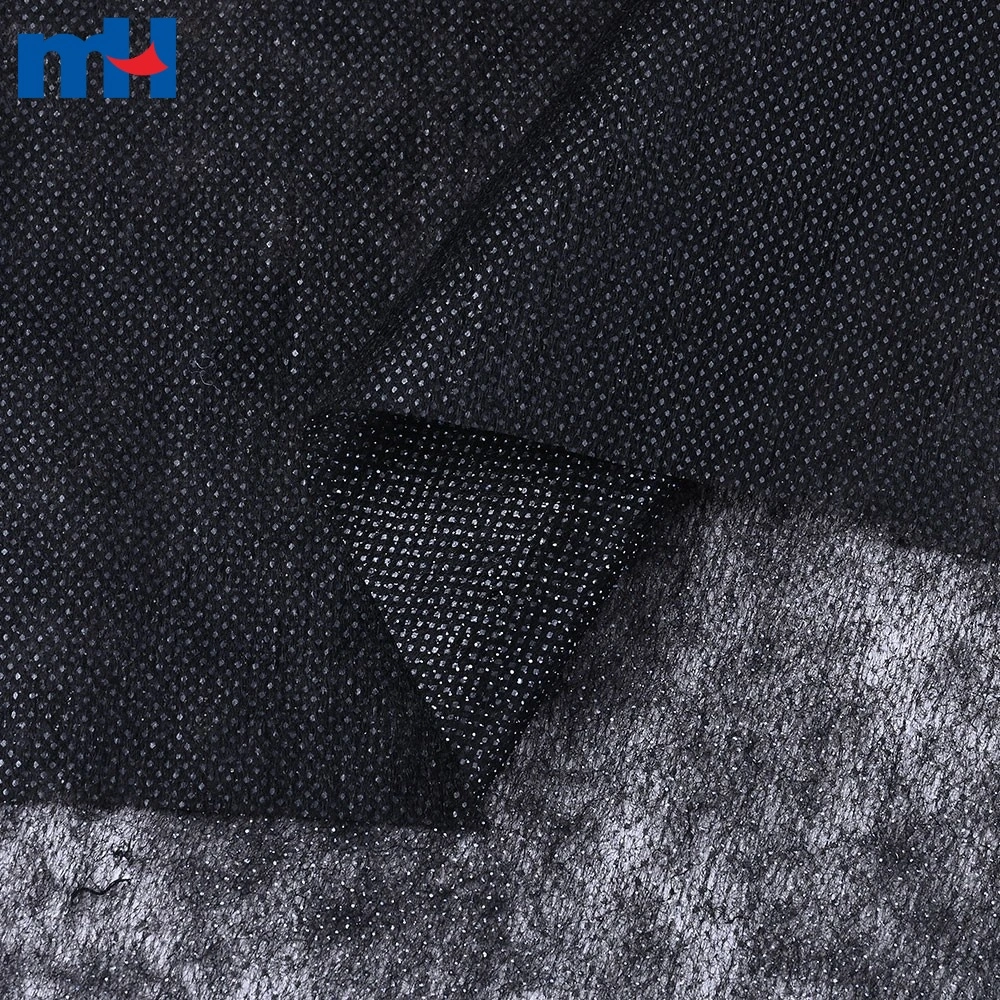

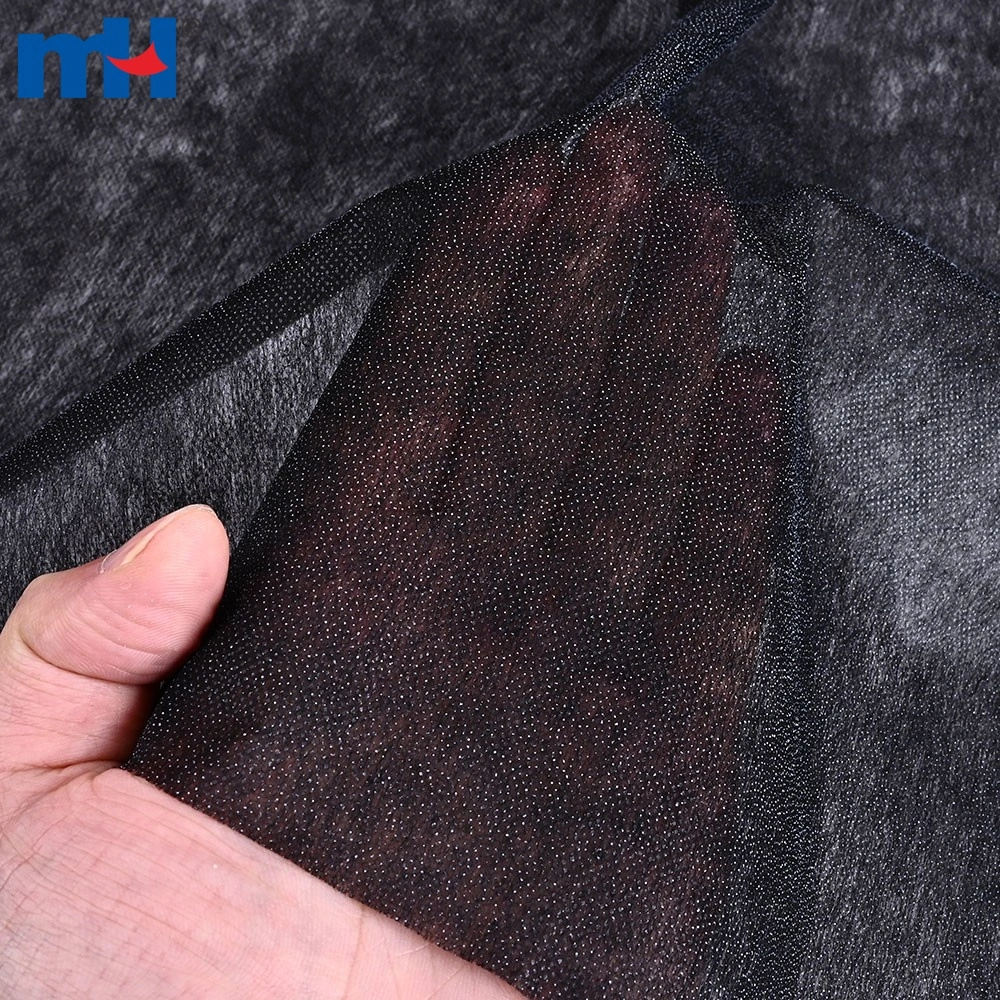

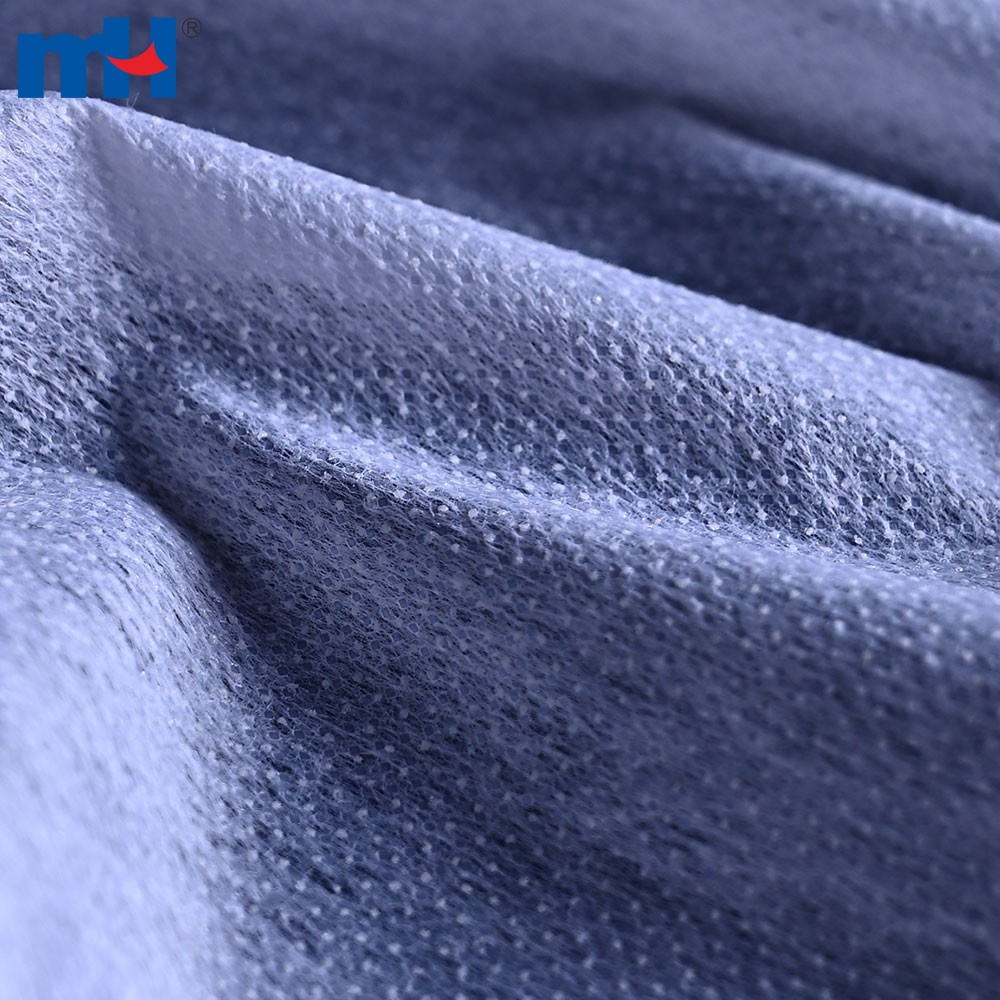

This double dot non-woven fusible interlining is made from 100% polyester fiber using thermal bonding technology, coated with PES adhesive in a double-dot pattern.

The double dot coating ensures more uniform glue distribution, strong bonding performance, and excellent stability. It effectively prevents glue strike-through and bubbling, delivering a clean and smooth fabric finish.

With a 40gsm weight, it offers better stiffness and support compared to lightweight interlinings, making it suitable for medium to heavier fabrics while maintaining a comfortable hand feel.

It features excellent dimensional stability, wash resistance, and breathability, widely used in shirts, jackets, and fashion garments for reinforcement and shaping.

Similar Products

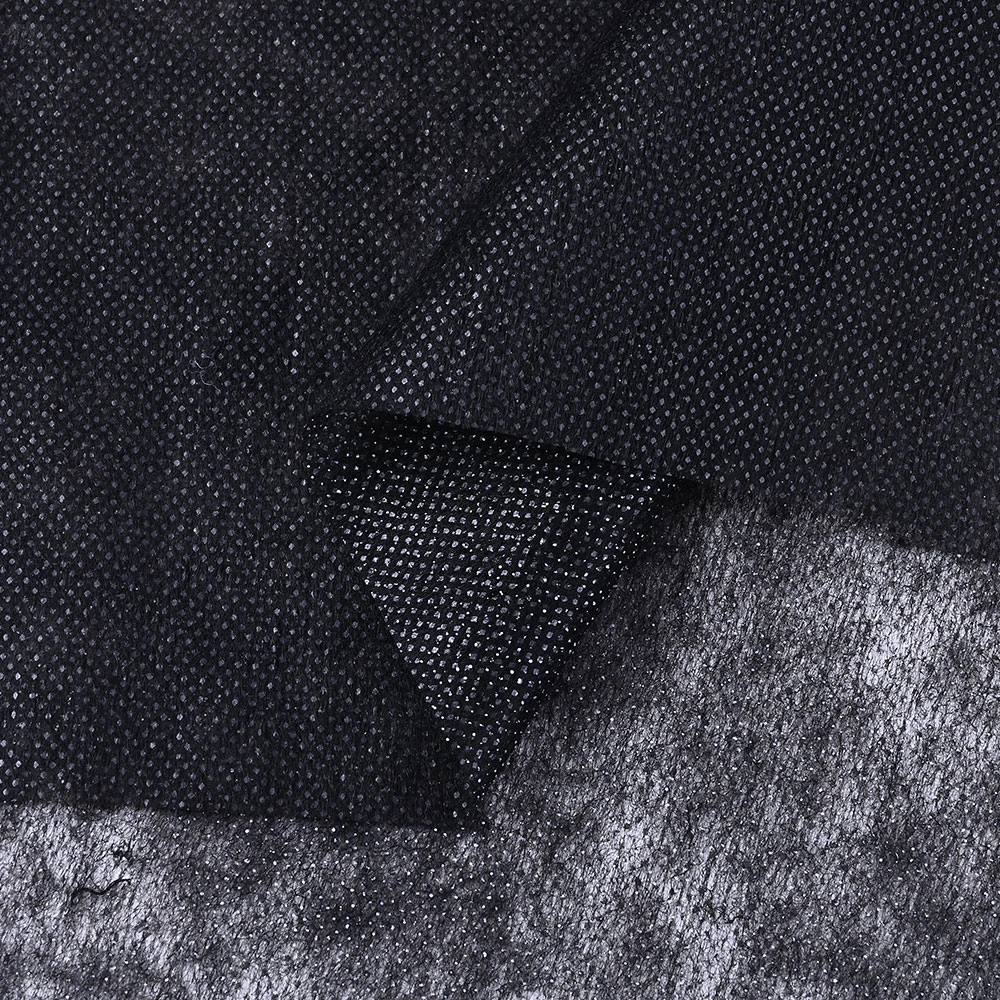

Model: 6403-0200

Width: 100mm

Weight: 23g/m

Glue Powder: PES

Fusing Conditions

Type	Machine Temperature	Actual Temperature	Pressure	Time
Continuous Press	130~150℃	127~143 ℃	1.5~2.5kg/cm²	12~15S
Flat Bed Press	130~150℃	127~143℃	0.8~1.5kg/cm²	12~15S

PS: To achieve the best adhesive effect, it is recommended to conduct an adhesion test before production.

MH Thermal Calendaring Nonwoven Interlining Feature

Softness and Flexibility
The nonwoven fabric maintains a soft and flexible texture, making it comfortable for use in garments and other applications where tactile properties are important.
Good Air Permeability
The double dot bonding pattern allows for excellent air permeability, ensuring breathability, which is essential for comfort in apparel and hygiene products.
OEKO-TEX Certification
The nonwoven interlining has passed the OEKO-TEX standard, ensuring that it is free from harmful substances and safe for human use.
Wide range of applications
This nonwoven fabric is ideal for apparel linings, medical & hygiene industry and automotive components.
