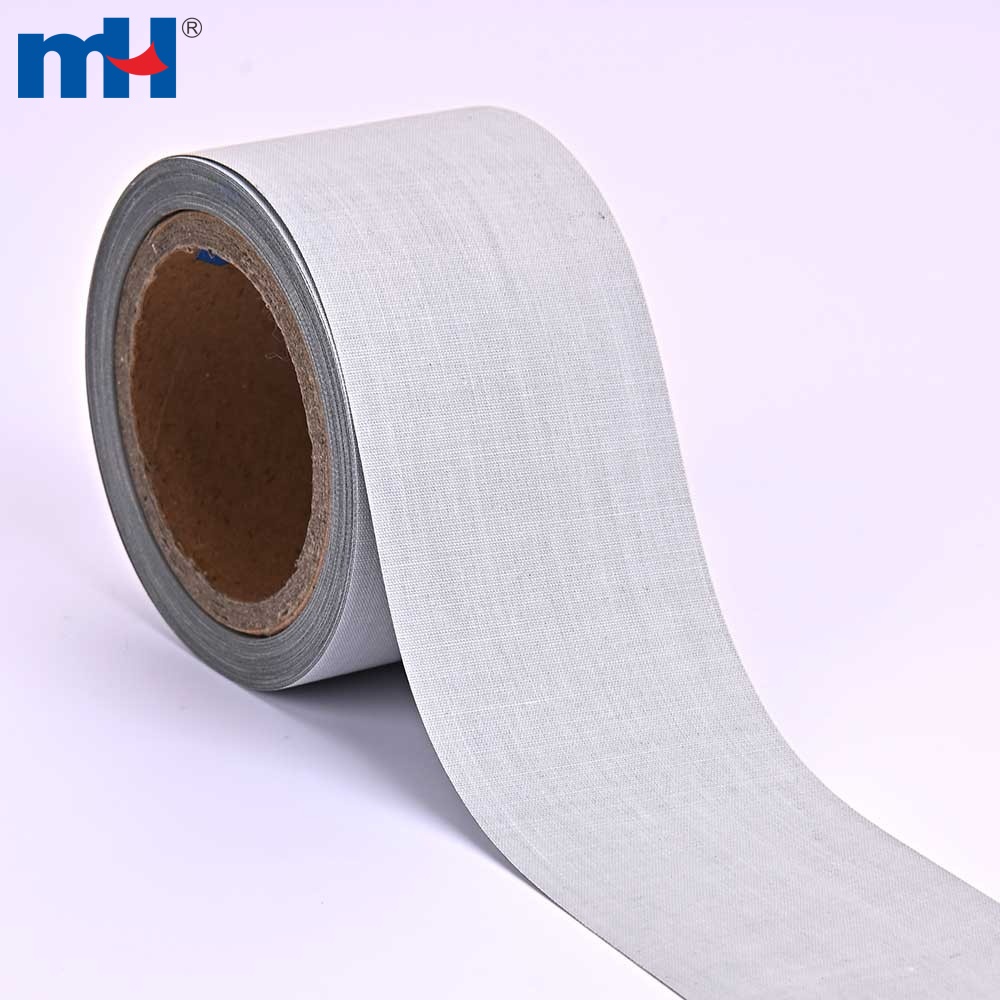

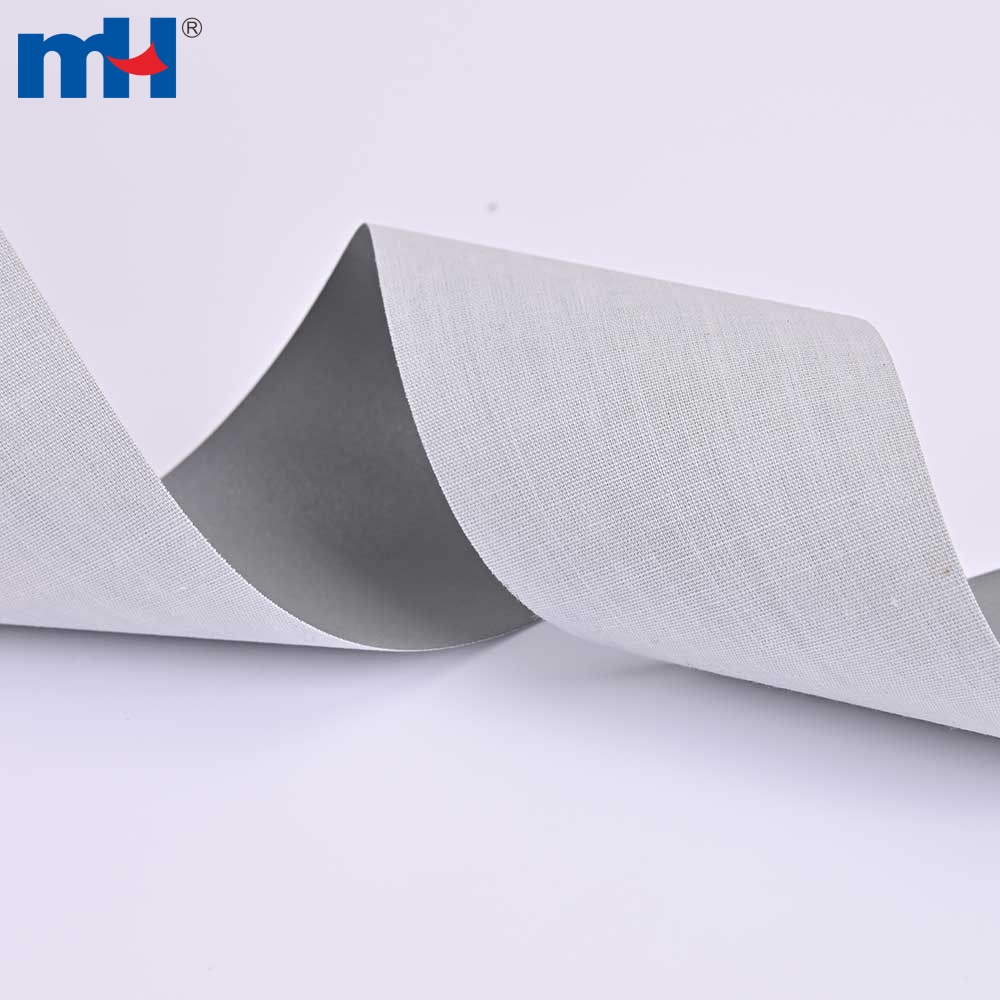

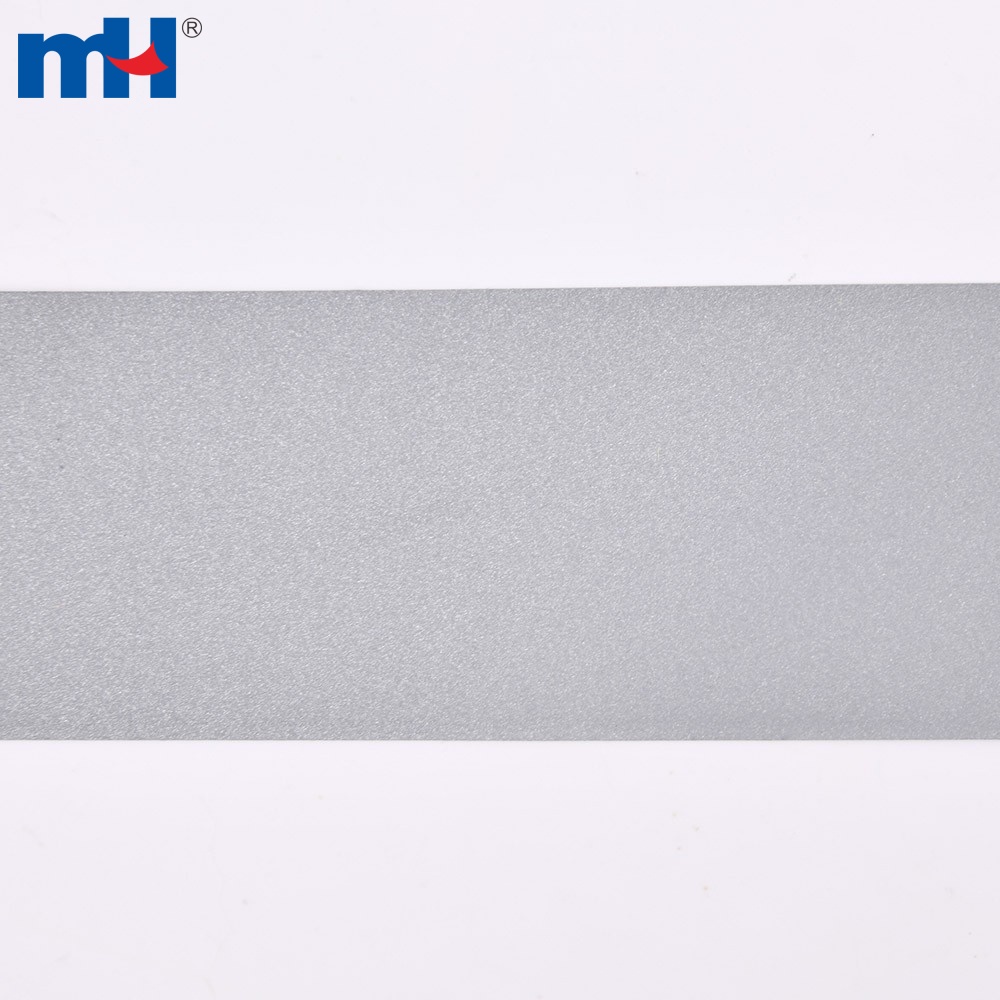

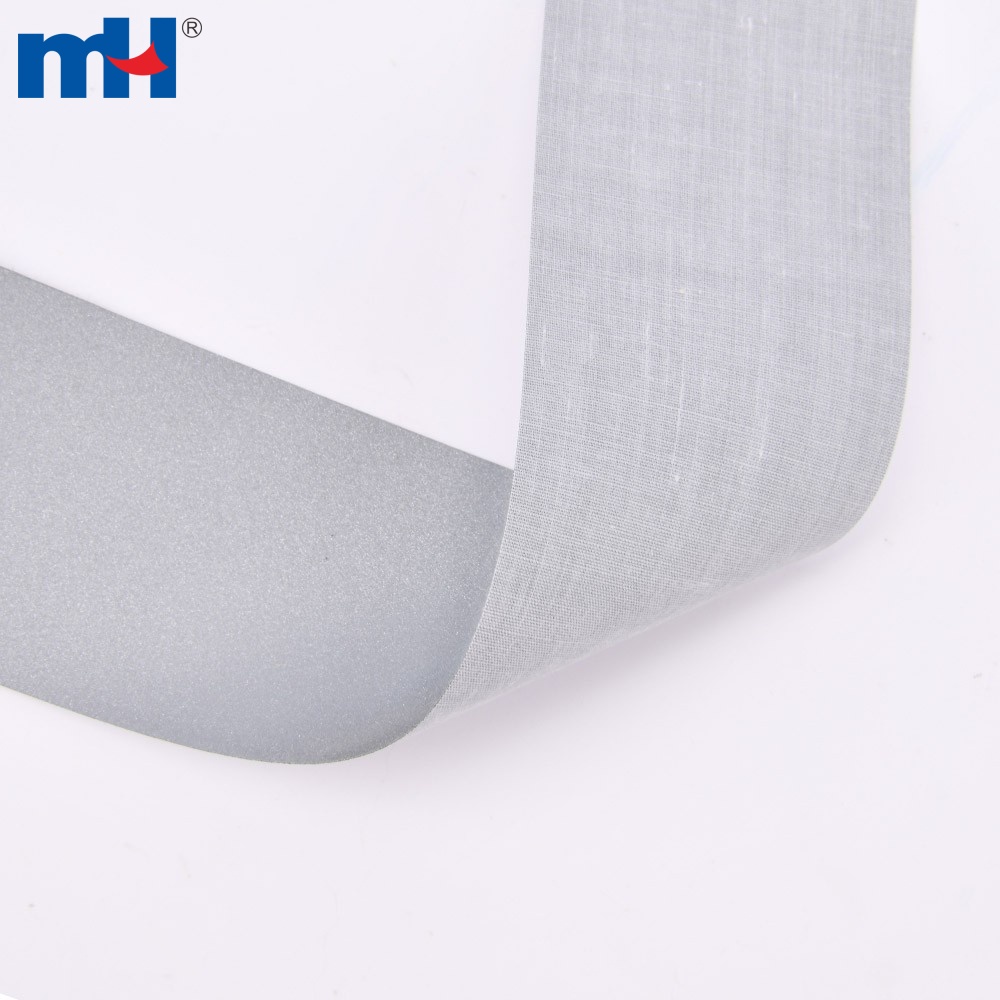

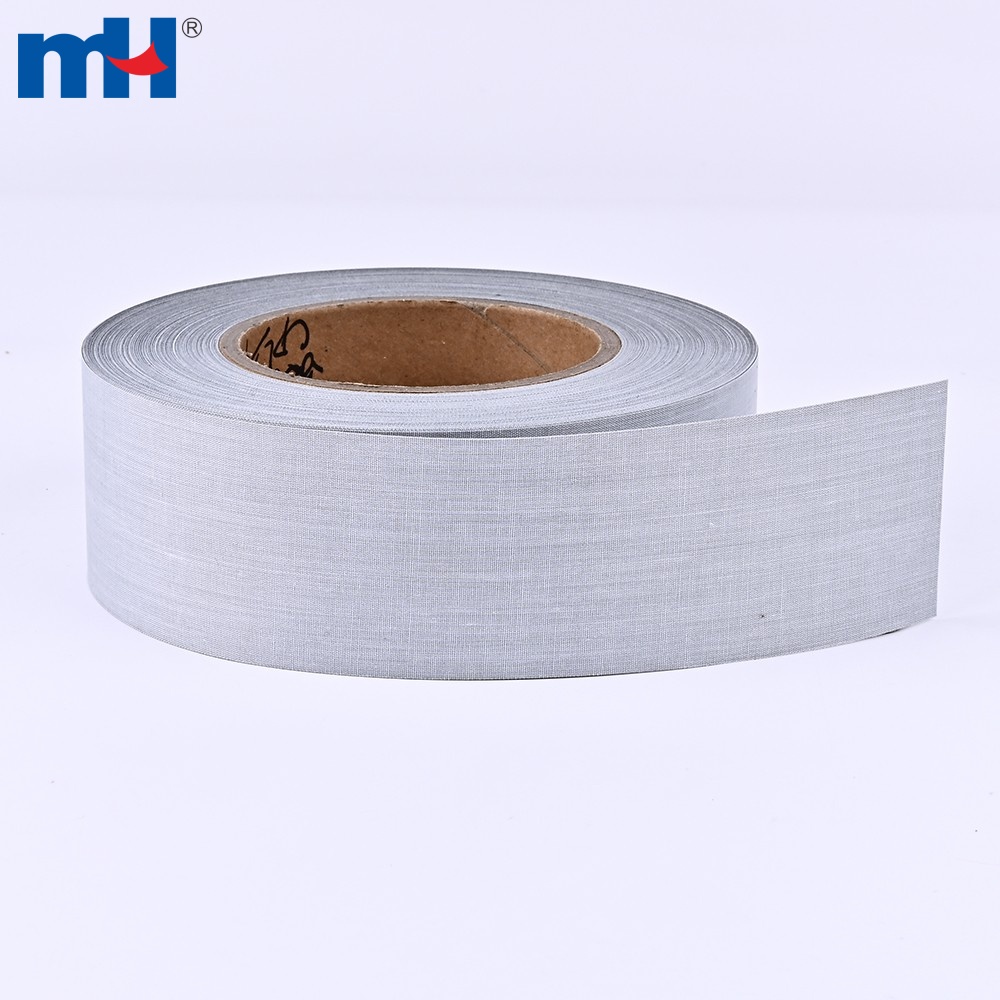

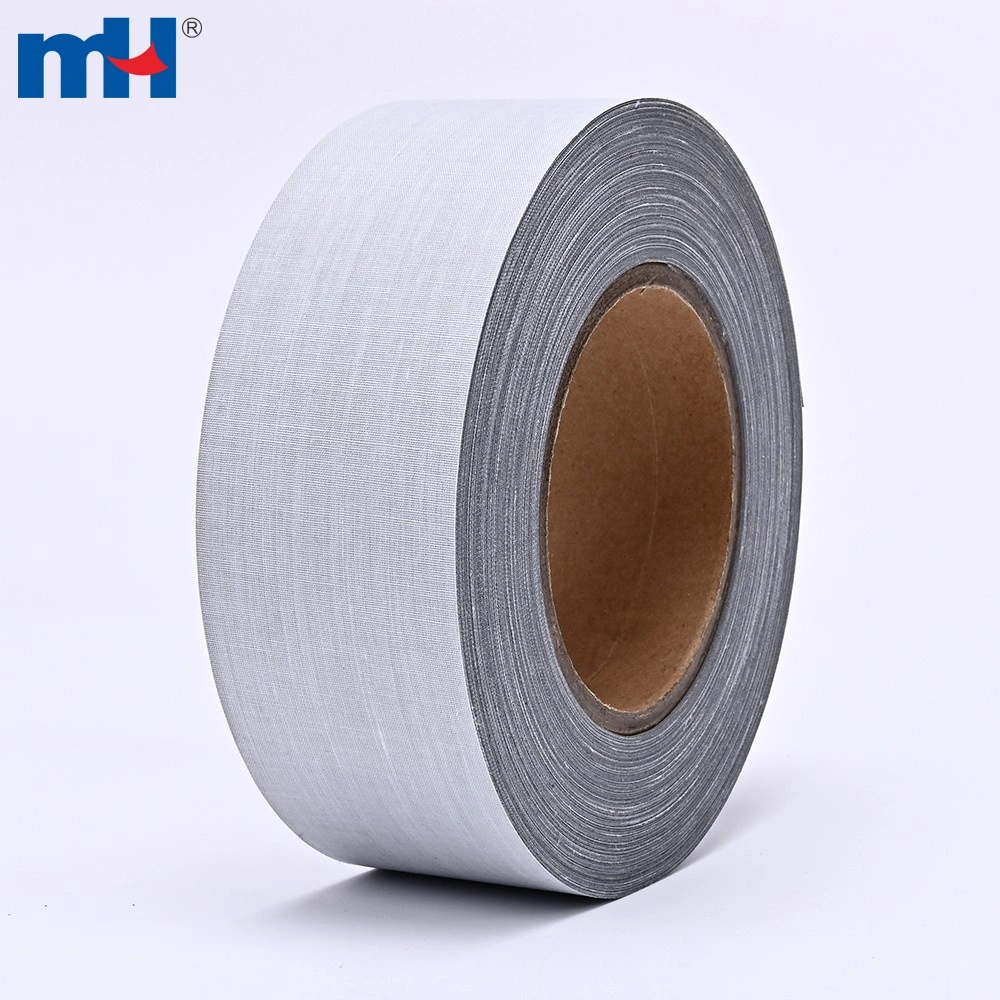

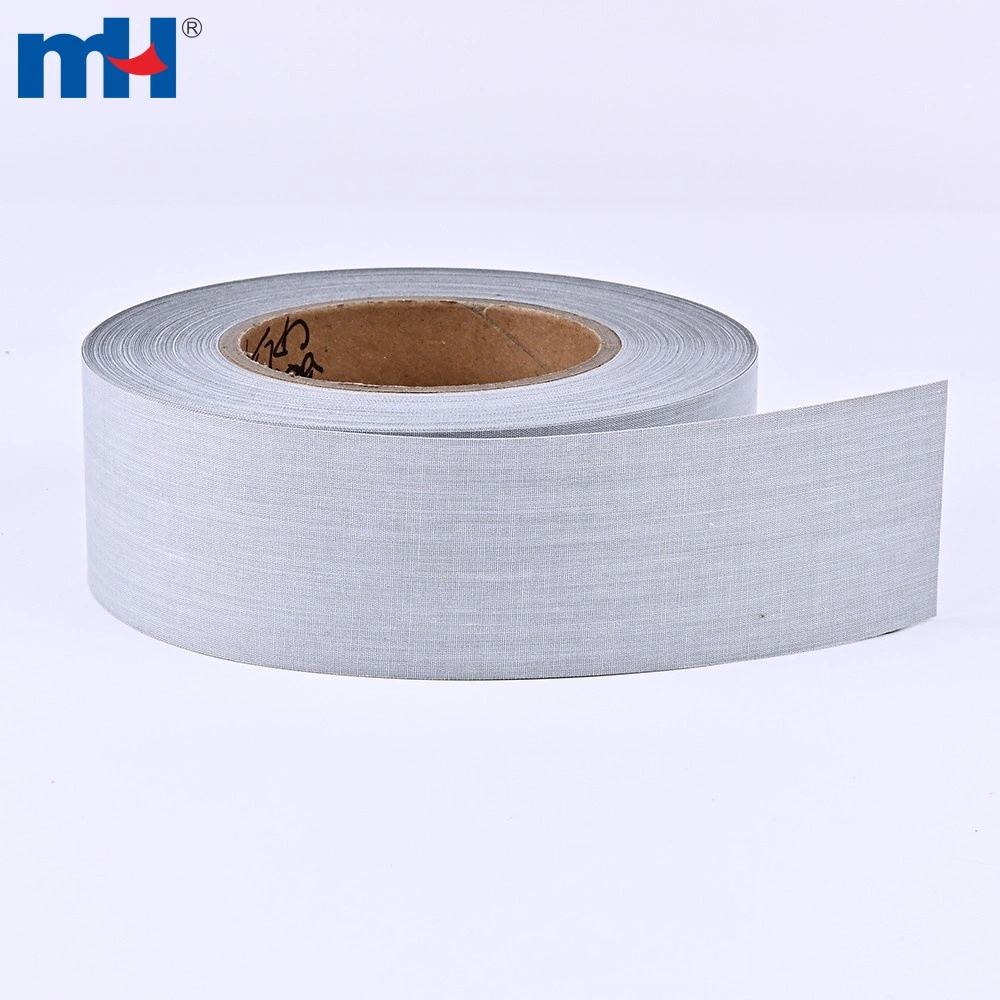

5cm T/C Silver Reflective Tape Built for Sew-On Use

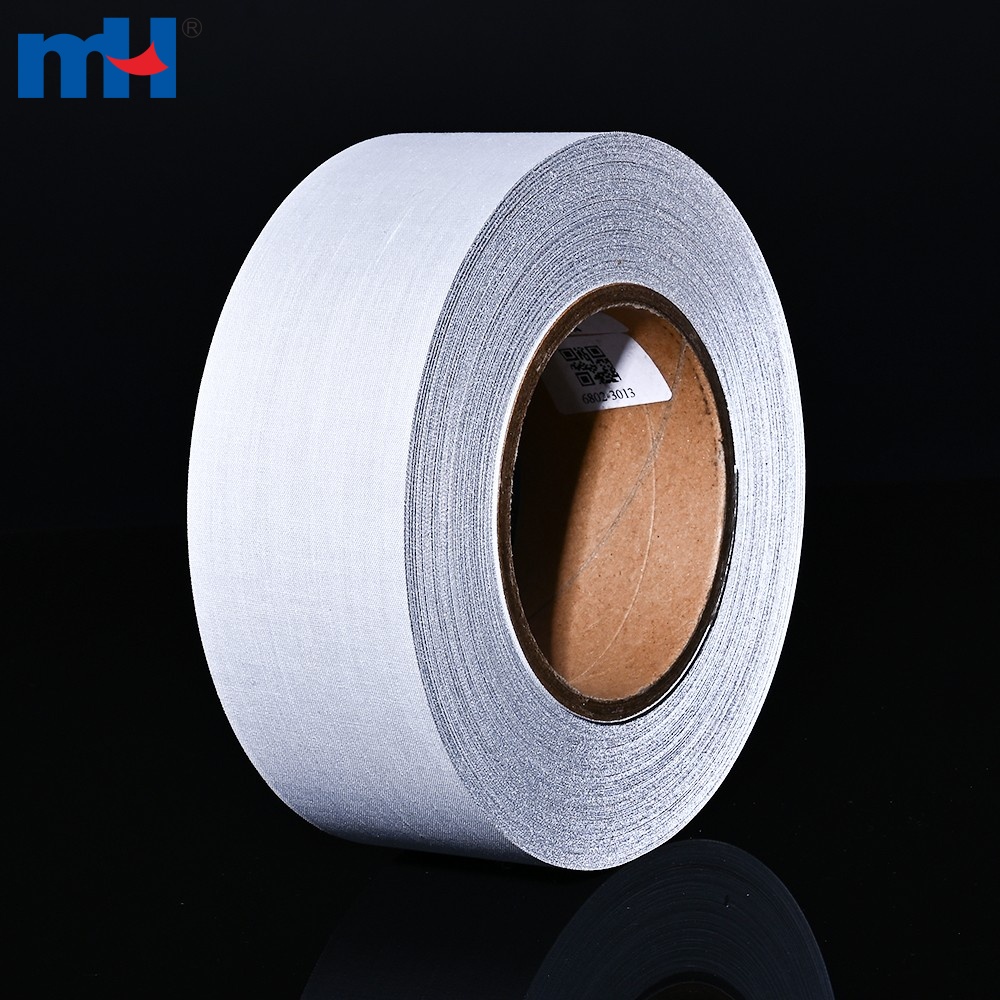

Sew-On T/C Silver Reflective Fabric Tape 5cm
- Model6802-3013
| Backing Fabric Material: | TC Fabric |
| Width: | 5.0cm |
| CPL: | 20≤CPL≤450 (cd/lux·m²) |
| Type: | T/C Reflective Tape |
| Color: | Grey, Silver, Yellow, Orange (custom ones available) |
| Packaging: | 50-200m/roll |
| MOQ: |
|
◆ Lead Time: 25-35 days
◆ Shipping: Sea freight, Railway freight
◆ Payment: T/T, L/C ...
Product Details
Attachment Type: Sew On
Daytime Color: Silver
Backing fabric: 65% Polyester / 35% Cotton
Reflective coefficient: 400≤CPL≤500
TC backing, silver color, sew-on type, washable to at least 50 cycles.
MH sew-on T/C silver reflective fabric tape in this listing is 5cm wide, combining a polyester/cotton (T/C) backing with a silver retroreflective coating rated 20 to 450 cd/lux·m².
Key Selling Points
- Broad reflectivity range: Rated 20-450 cd/lux·m², the tape covers a wide performance band suited to different workwear visibility requirements.
- T/C backing balance: The polyester/cotton blend keeps the tape soft to sew while adding abrasion resistance for daily wear.
- Wash-tested durability: MH tape retains at least 70% of its reflectivity after 50 wash cycles, holding up over the life of a garment.
- Wide operating temperature range: Rated for -30°C to 70°C use without cracking or delaminating.
- Certified safety compliance: Manufactured to EN471 Class II, ANSI/ISEA 107-2010 Class II and OEKO-TEX 100 standards for workwear programs.
Recommended for all types of garments, uniforms, coveralls, jackets, rainwear, vests, etc.
Reflective Tape Technical Index
| Parameter | Description | Typical Value/Standard |
| Retroreflectivity (RA, cd/lx/m²) | Measures brightness at night—higher values indicate stronger reflection. | - Standard: ≥50 (EN ISO 20471) - High-Intensity: ≥300 (ANSI 107) |
| Observation Angle | Reflectivity decreases as the light source angle increases (e.g., 30° or 45°). | Tested at 0° (direct), 30°, and 45° angles. |
| Color & Colorfastness | Reflective colors (silver, fluorescent yellow/orange/red) and fade resistance. | AATCC or ISO 105-B02 colorfastness tests. |
| Wash Resistance | Retroreflectivity retention after washing. | ≥70% after 50 washes (EN ISO 6330). |
| Abrasion Resistance | Wear resistance (e.g., Martindale test). | ≥10,000 cycles (ASTM D4966). |
| Temperature Range | Operational limits. | -30°C to 70°C (no cracking or delamination). |
| UV Resistance | Performance retention under sunlight. | ≤10% reflectivity loss after 500h QUV. |
Reflective Tape Performance & Care Specifications
| Retroreflective coefficient | 20-450cd/lux.m2 |
| Care guide | Home washing 25times at 60℃; Dry-washing 5 times |
| Certificate | EN471 CLASS Ⅱ; ANSI/ISEA 107-2010 CLASS Ⅱ; OEKO-TEX 100 |
| Feature | Abrasion resistance; Washing resistance; Soft and lightweight |
Retroreflectivity Customization
Type Customization
Usage
Reflective tape is used to improve visibility and safety in various applications, including traffic signs, vehicles, workwear, and outdoor gear, especially in low-light conditions.
